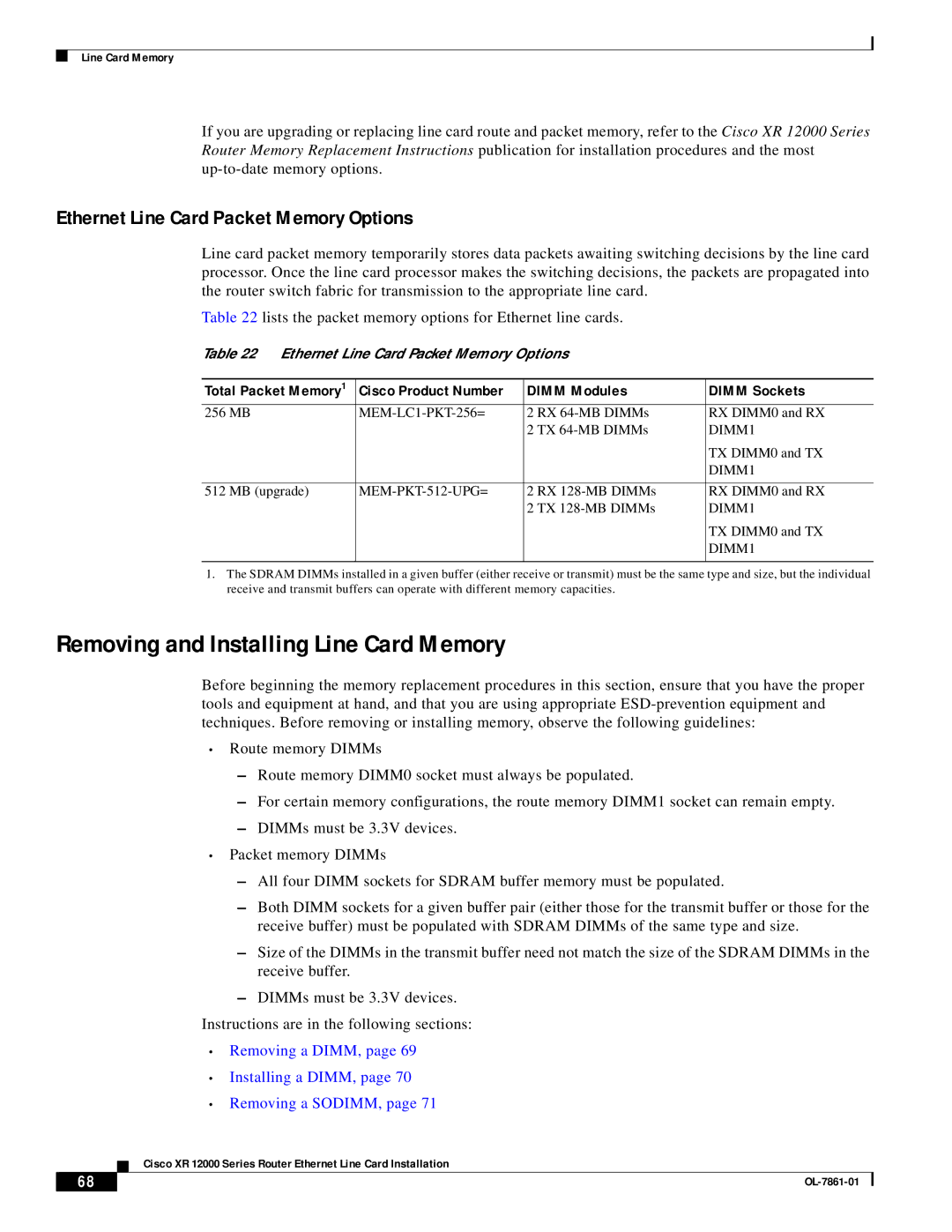

Line Card Memory

Engine 2 Line Card Memory Locations

Figure 45 shows the DIMM socket locations on an Engine 2 line card. This line card is equipped with eight DIMM sockets:

Two route memory DIMM sockets

Two pairs of packet memory DIMM sockets (RX and TX pairs)

One pointer look-up (PLU) memory DIMM socket (not user serviceable)

One table look-up (TLU) memory DIMM socket (not user serviceable)

Figure 45 Engine 2 Line Card Memory Locations

1

2

3

4

TX

0

ACTIVE

PKT

CARRIER



RX







RX



5

OC-

7

8

48/POS-SR-



SC





93276

6

1

Route memory DIMM0

5

Packet memory RX DIMM0









2

Route memory DIMM1

6

Packet memory RX DIMM1









3

Packet memory TX DIMM0

7

PLU DIMM (not user serviceable)









4

Packet memory TX DIMM1

8

TLU DIMM (not user serviceable)









ISE Line Card Memory Locations

Figure 46 shows the small outline DIMM (SODIMM) socket locations on an ISE line card. This line card is equipped with 10 SODIMM sockets:

Two route memory SODIMM sockets

Four packet memory sockets (not user serviceable)

Four TLU/PLU memory sockets (not user serviceable)

Cisco XR 12000 Series Router Ethernet Line Card Installation



OL-7861-01

65
