Replacing a Wlan Card, 172 | Dell PP22L specification

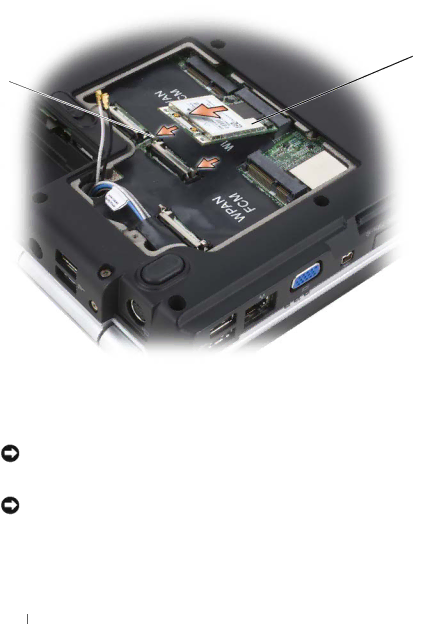

6Lift the WLAN card out of its system board connector.

2

1

1 metal securing tabs (2)

2 WLAN card

Replacing a WLAN Card

NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors on the card and on the system board, and realign the card.

NOTICE: To avoid damage to the WLAN card, never place cables under the card.

1Insert the WLAN card connector into the system board connector labeled "WLAN" at a 45-degree angle.

2Press the other end of the WLAN card down into the securing tabs until the card clicks into place.

172

Adding and Replacing Parts

Image 172

Dell PP22L manual Replacing a Wlan Card, 172
