6 Tests and Error Messages

MaxiLife Test Sequence and Error Messages

Post Test Sequence and Post Error

In this phase, MaxiLife waits for any error messages that the BIOS may issue. If such an error occurs, then an error code is displayed on the monitor screen.

On the HP Kayak XU700 Minitower PC Workstation, a screen similar to the following example is displayed. The error code that appears on the LCD status panel is the same as the one that appears on the monitor screen. If the POST issues several error codes, only the last one is visible on the LCD status panel.

ERROR

Keyboard Test

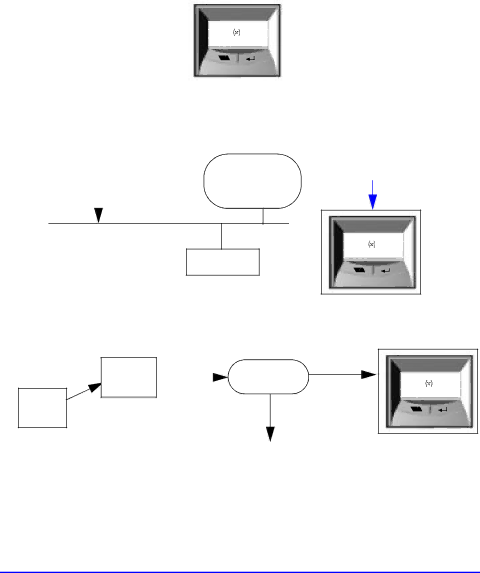

The following diagrams show the different BIOS-generated errors.

Video Slots

		“BIOS” ERROR

BIOS
BIOS			MaxiLife
			“Spy System
	“read system memory”		“Spy System
	“read system memory”		Memory”

System Memory

“BIOS”-Generated Errors

“No Video”

BIOSMaxiLife

Beep Codes

There is a time-out of 3 seconds before the message is displayed on the LCD status panel and video display.

ERROR

BIOS Check sum

LCD Status Panel

ERROR

No Video

LCD Status Panel

100
