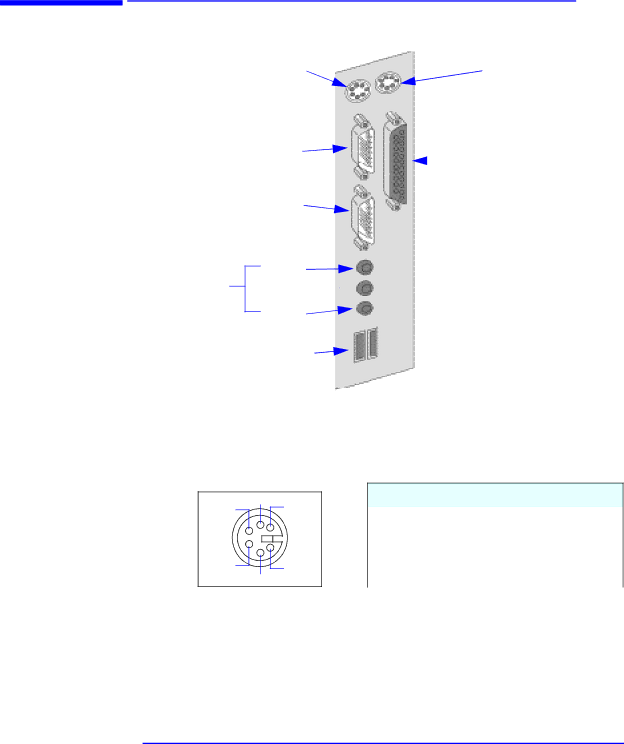

Rear Panel Socket Pin Layouts

7Connectors and Sockets Rear Panel Socket Pin Layouts

Keyboard Connector

Mouse Connector

9-pin Serial Port	Serial Port A
	Serial Port A	25-pin Parallel Port Connector


Connectors



	Serial Port B
	Serial Port B

Line Out

Audio jacks Line In

MIC

USB Connectors (two)

Keyboard and Mouse

Connectors

Keyboard and Mouse Connectors

Pin		Signal	Pin	Signal

1	Data		2	Not Used

3	Ground		4	+5 V dc

5	Clock		6	Not Used

122
