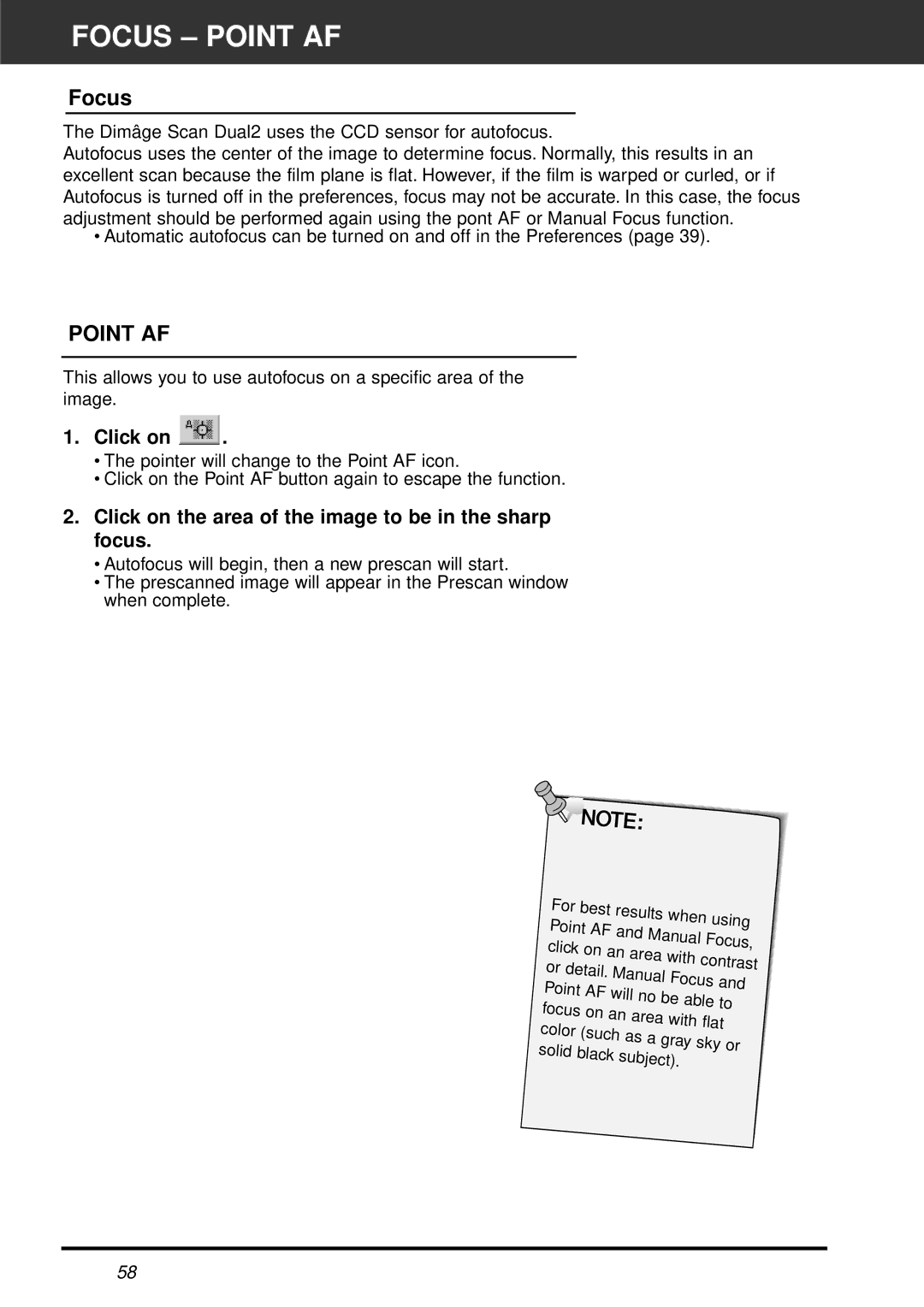

FOCUS – POINT AF

Focus

The Dimâge Scan Dual2 uses the CCD sensor for autofocus.

Autofocus uses the center of the image to determine focus. Normally, this results in an excellent scan because the film plane is flat. However, if the film is warped or curled, or if Autofocus is turned off in the preferences, focus may not be accurate. In this case, the focus

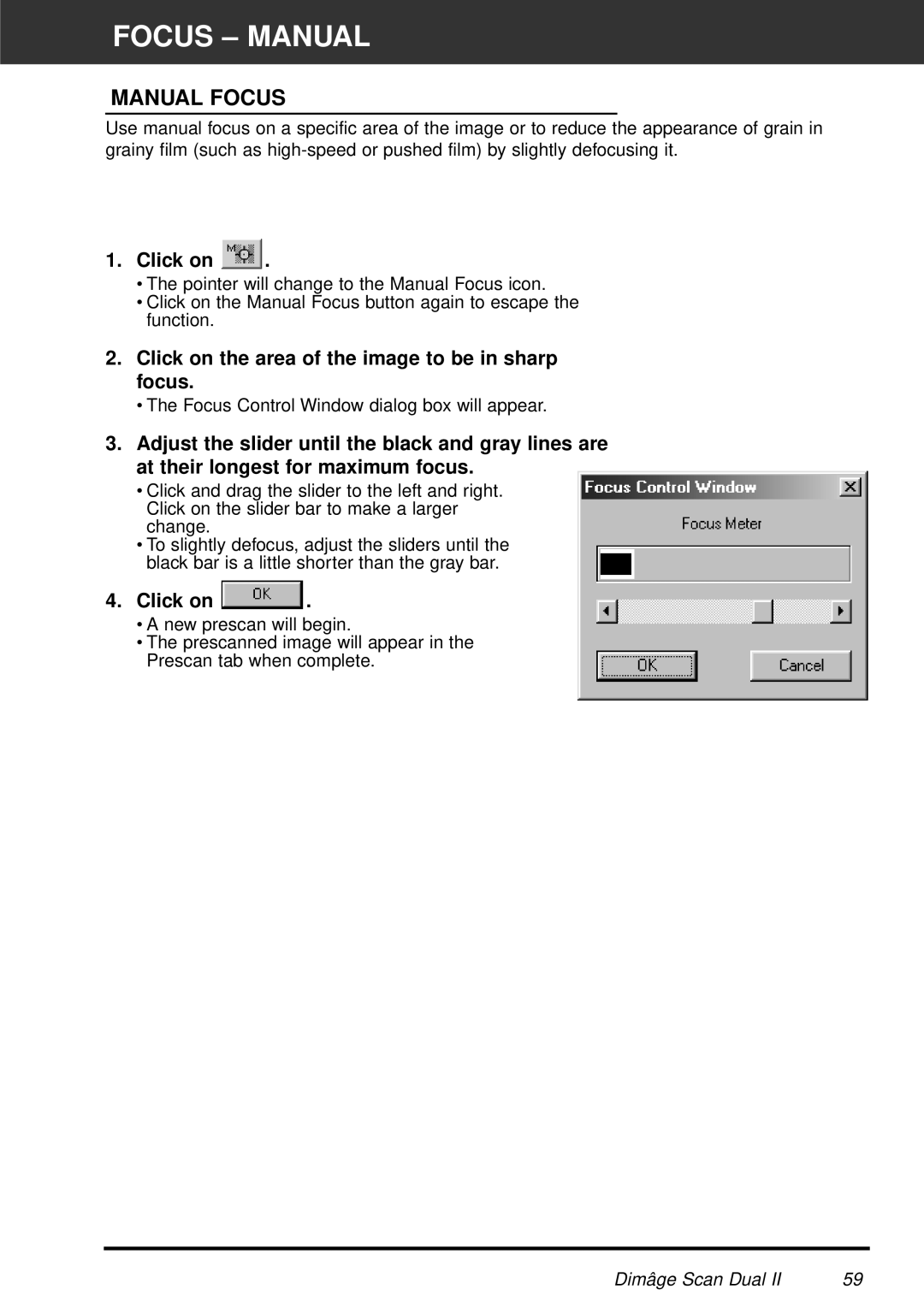

adjustment should be performed again using the pont AF or Manual Focus function.

• Automatic autofocus can be turned on and off in the Preferences (page 39).

POINT AF

This allows you to use autofocus on a specific area of the image.

1.Click on .

•The pointer will change to the Point AF icon.

•Click on the Point AF button again to escape the function.

2.Click on the area of the image to be in the sharp focus.

•Autofocus will begin, then a new prescan will start.

•The prescanned image will appear in the Prescan window when complete.

For
best results
when
Point AF	using
and Manual
click	Focus,
on an area
with contrast
or detail.
Manual
Focus and
Point AF will no
be able to
focus
on an
area with flat
color (such as a
gray sky or
solid
black subject).

58

Image 58

Minolta AF-2820U manual Focus Point AF, Click on the area of the image to be in the sharp focus
