Hardware-Installation (Fortsetzung)

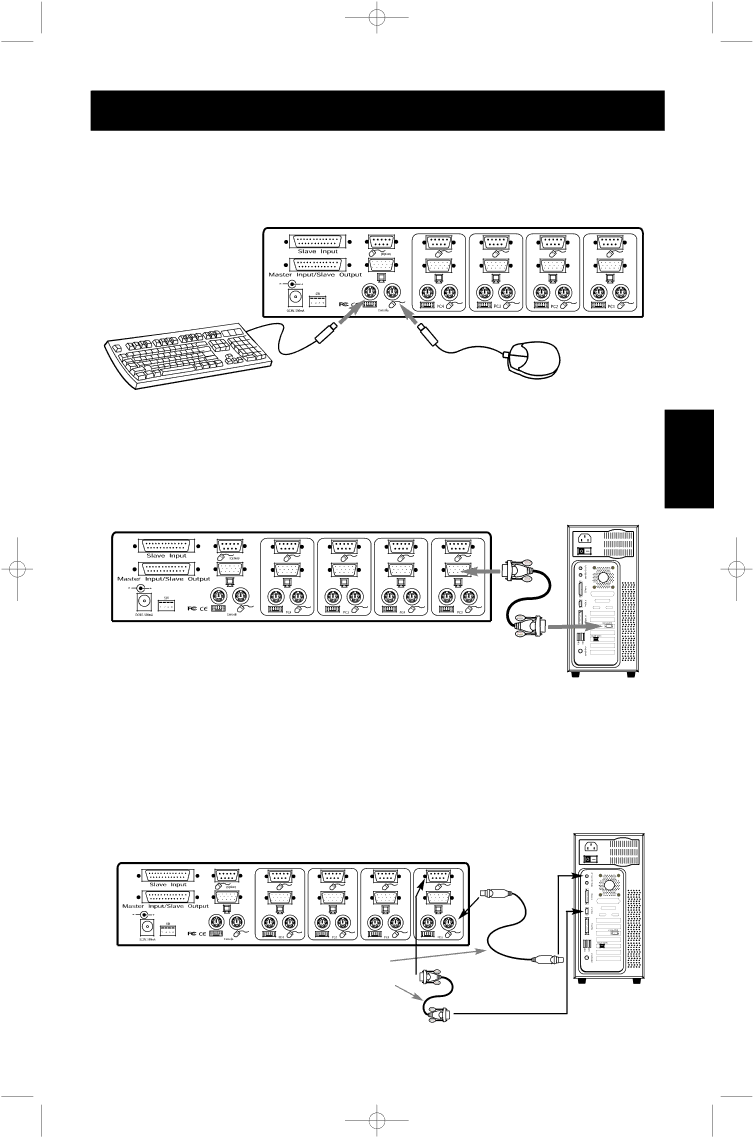

3. Schließen Sie Tastatur und Maus am OmniViewPRO an. Zum Anschluß einer AT-Tastatur benötigen Sie einen AT-PS/2-Adapter (Belkin Artikel-Nr. F2N017g).

Rückseite des OmniViewPRO

PS/2-Maus

PS/2-Tastatur

4. Schließen Sie das VGA-Kabel für den ersten Computer am OmniViewPRO an (verwenden Sie hierzu das Belkin VGA-Kabel F2N025gXX-T oder A3H981gXX). Das

Steckerende des Kabels wird in den VGA-Anschluß am Computer eingesteckt, das De Buchsenende in den VGA-Anschluß PC1 auf der Rückseite des OmniViewPRO.





Rückseite des

PRO

PC

Rückseite des OmniView







F2N025gXX-T

5. Schließen Sie das Mauskabel für den ersten Computer am OmniViewPRO an. Bei Verwendung eines PS/2-Kabels (Belkin Artikel-Nr. F2N036gXX) ist das eine Ende des Kabels in den PS/2-Mausanschluß am Computer einzustecken und das andere in den PS/2-Mausanschluß PC1 auf der Rückseite des OmniViewPRO. Bei Verwendung eines seriellen Mauskabels (Belkin Artikel-Nr. F2N209gXX-T) ist ein Ende in einen seriellen DB9-Anschluß am Computer einzustecken und das andere in den seriellen DB9- Mausanschluß PC1 auf der Rückseite des OmniViewPRO.

Rückseite des

PC

Rückseite des OmniViewPRO

F2N036gXX für PS/2-Maus

ORER

F2N209gXX-T für serielle Maus
