Page 48

TD-W8960N Wireless N ADSL2+ Modem Router User Guide

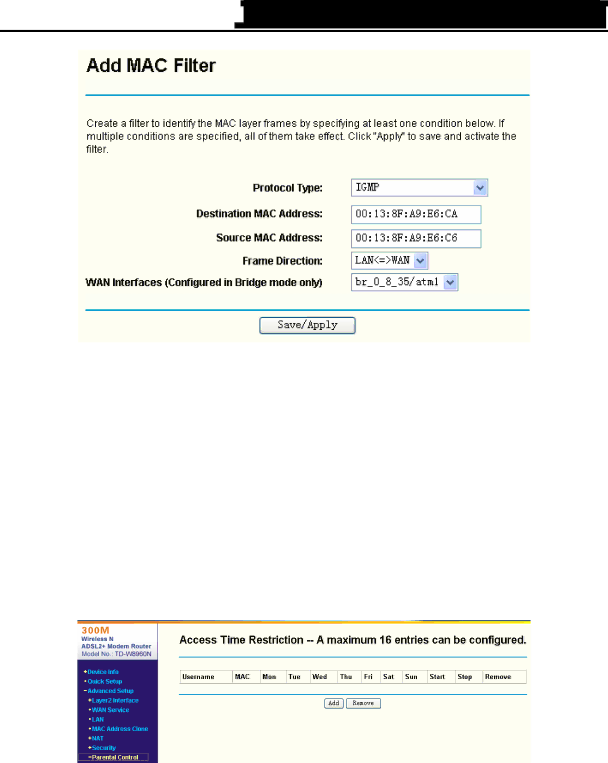

Figure 4-35

2.Select Protocol Type in the drop-down list for the rule.

3.Enter Destination MAC Address and Source MAC Address in the text box.

4.Select Frame Direction in the drop-down list for the rule.

5.Select the WAN interfaces from the drop-down list.

6.Click Save/Apply to save this entry.

4.4.7 Parental Control

Choose “Advanced Setup”Æ“Parental Control”. You can configure the Parental Control rules on the screen (shown in Figure 4-37). This function allows you control the internet activities of the child, limit the child to access certain websites and restrict the time of surfing.

Figure 4-36

4.4.7.1 Time Restriction

This section allows you add time of day restriction to a special LAN device connected to the Router.

41
