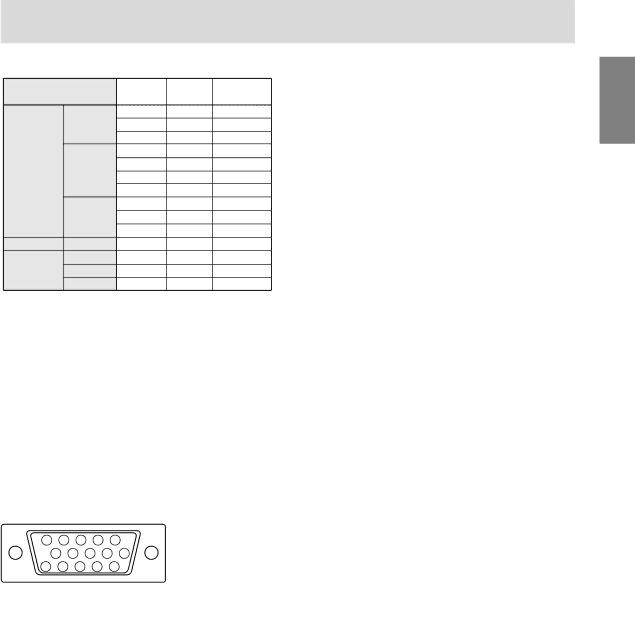

Specifications
Signal timings
Display mode | Hsync | Vsync | Dot | ||
frequency | |||||
|
|
|
| ||
VESA | 640x480 | 31.5kHz | 60Hz | 25.175MHz | |
| 37.9kHz | 72Hz | 31.5MHz | ||
|
| ||||
|
| 37.5kHz | 75Hz | 31.5MHz | |
| 800x600 | 35.1kHz | 56Hz | 36.0MHz | |
|
| 37.9kHz | 60Hz | 40.0MHz | |
|
| 48.1kHz | 72Hz | 50.0MHz | |
|
| 46.9kHz | 75Hz | 49.5MHz | |
| 1024x768 | 48.4kHz | 60Hz | 65.0MHz | |
|
| 56.5kHz | 70Hz | 75.0MHz | |
|
| 60.0kHz | 75Hz | 78.75MHz | |
US text | 720x400 | 31.5kHz | 70Hz | 28.3MHz | |
Power | 640x480 | 35.0kHz | 66.7Hz | 30.2MHz | |
Macintosh | 832x624 | 49.7kHz | 74.6Hz | 57.3MHz | |
series | 1024x768 | 60.2kHz | 75Hz | 80.0MHz |
Power management
The monitor is based on VESA DPMS (Display Power Management Signaling).
To activate the monitor's power management function, both the video card and the computer must conform to the VESA DPMS standard.
DPMS mode | Screen | Power | |||
consumption | |||||
ON | Display on | 26 W | Yes | Yes | |
STANDBY |
|
| No | Yes | |
| Display off | 2 W |
|
| |
SUSPEND | Yes | No | |||
|
| ||||
OFF |
|
| No | No | |
|
|
|
|
|
English
-Recommended resolution is 1024 x 768.
-All are compliant only with
-Frequencies for Power Macintosh are reference values.
-If the monitor is receiving timing signals that are not compatible, [OUT OF TIMING] will appear. Follow your computer's instruction manual to set the timing so that it is compatible with the monitor.
-If the monitor is not receiving any signal (synch signal), [NO SIGNAL] will appear.
The analog RGB input connector pin
(Mini D-sub connector with 15 pins)
5 | 4 | 3 | 2 | 1 |
10 | 9 | 8 | 7 | 6 |
15 | 14 | 13 | 12 | 11 |
No. | Function |
1 | Red video signal input |
2 | Green video signal input |
3 | Blue video signal input |
4 | GND |
5 | GND |
6 | For red video signal GND |
7 | For green video signal GND |
8 | For blue video signal GND |
9 | +5V |
10 | GND |
11 | N.C. |
12 | DDC data |
13 | For Hsync signal input |
14 | For Vsync signal input |
15 | DDC clock |
|
|
DDC (Plug & Play)
This monitor supports the VESA DDC (Display Data Channel) standard.
DDC is a signal standard for carrying out Plug & Play functions on the monitor or PC. It transfers information such as degree of resolution between the monitor and PC. You can use this function if your PC is DDC compliant and if it is set so that it can detect the Plug & Play monitor.
There are many varieties of DDC due to the differences between systems. This monitor works with DDC1 and DDC2B.
