Airlink101 AR570W user manual

Page 47

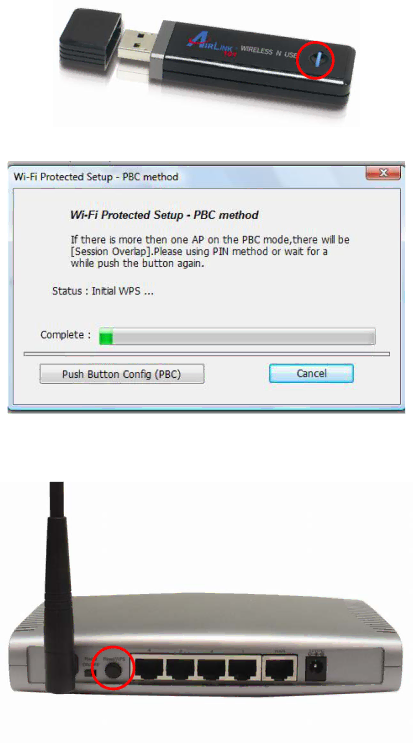

Step 2 Push and hold the Easy Setup Button on the Adapter until you see the following window pops up on the computer monitor.

Step 3 Within the following 2 minutes, push the Easy Setup Button the Router. The WLAN LED will stay solid green instead of blinking.

Step 4 The Router will now start the handshake with the wireless adapter which will take about 30 seconds. When you see the window similar to the one below, the connection has been established.

48
