Page 43

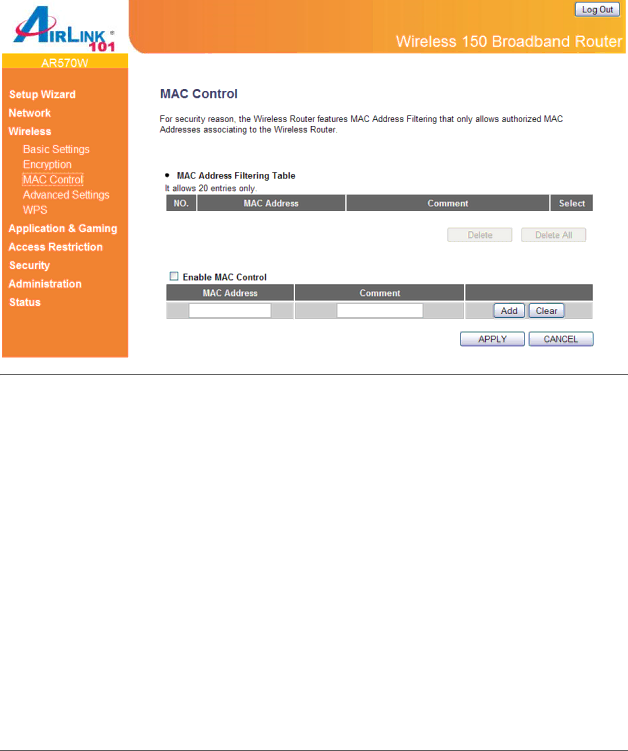

Parameters

Description

Enable MAC Control

Check/Uncheck to enable/disable wireless MAC control.

MAC Address

Input the MAC address of your wireless devices here,



format ‘xx:xx:xx:xx:xx:xx’.

Comment

You can input any text here as the comment of this MAC



address, like ‘ROOM 2A Computer’ or anything.

Add

Click “Add” button to add the MAC address and



associated comment to the MAC address filtering table.

Clear

Click “Clear” to remove the value you inputted in MAC



address and comment field.

Delete

If you want to delete a specific MAC address entry,



check the ‘select’ box of the MAC address you want to



delete, then click ‘Delete’ button. (You can select more



than one MAC addresses).

Delete All

If you want to delete all MAC addresses listed here,



please click ‘Delete All’ button.

After you finish with all settings, please click “Apply” button.

If you want to reset all settings in this page, please click “Cancel” button.

After you clicked Apply, the following message will be displayed on your web browser:

44
