Bosch Appliances VIP, XD manual 17 COM1

Page 43

VIP XD

Configuration Using a Web Browser en 43





5.17 COM1

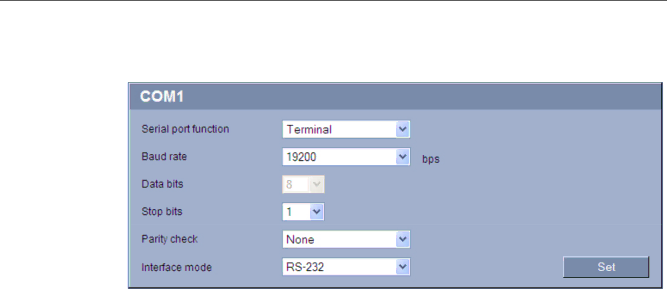

You can configure the serial interface parameters (orange terminal block) to meet your requirements.

Serial port function

Select the desired serial port function from the list. If you wish to use the serial port to transmit transparent data, when using a control desk for example, select Transparent. Select Terminal if you wish to operate the unit from a terminal.

Baud rate

Select the value for the transmission rate in bps.

Data bits

The number of data bits per character cannot be changed.

Stop bits

Select the number of stop bits per character.

Parity check

Select the type of parity check.

Interface mode

Select the desired protocol for the serial interface.

Bosch Security Systems

Installation and Operating Manual

DOC V4.0 2009.06
