Avaya 4622SW IP Telephone Button/Feature Descriptions Callout, Number Name Description, Lamp

Page 13

The 4622SW IP Telephone

Table 1: 4622SW IP Telephone Button/Feature Descriptions

Callout

Button/Feature

Button/Feature

Number

Name

Description

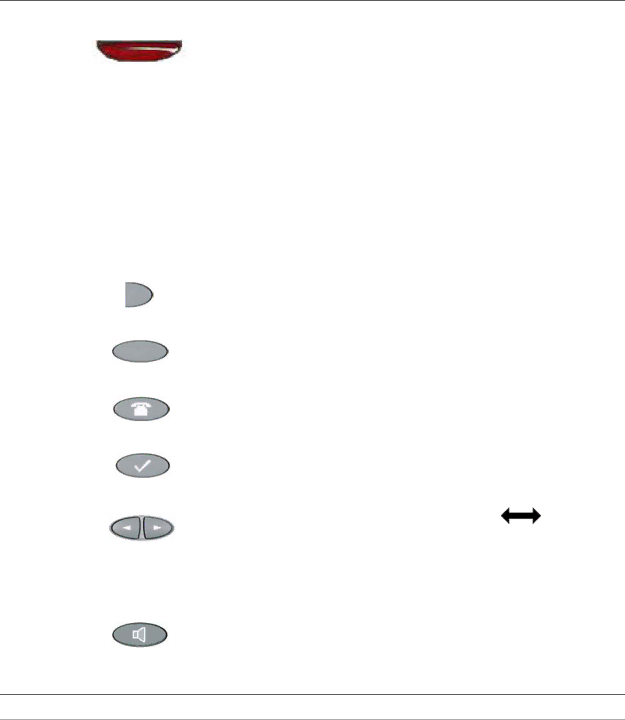

1Message Waiting When lit, indicates you have a message waiting on your voice

Lamp

messaging system. This indicator can also be optioned to



flash for incoming calls.

2Display The display screen is 4 inches by 2.9 inches. Information displayed varies according to the application/function currently active. When the phone is idle, the top area displays the current date and time. When someone is calling you, the name/phone number of that person displays in the top area. The top area also displays a Missed Call icon and the number of missed calls, as applicable.The display has eight lines. Six display lines are devoted to the current application. One line shows softkey labels for the current application and one line shows Help and other procedural messages. Four grayscale colors are used to indicate activity.

3Line/Feature Twelve Line/Feature buttons provide both call appearances

buttons

(lines for incoming and outgoing calls) and application-specific



functionality.

4Softkeys Used to navigate to, or start application-specific actions, such as Call a number, Cancel the current activity, Save entered data such as a Speed Dial label.

5Phone/Exit Displays the Phone application main screen or, if applicable, exits the current call server-based feature and normalizes the display.

6Options Displays the Options main screen, from which display and

application settings can be updated.

7Page Left/Right Shifts from one page to another in the same application, when

the display presents the “paging indicator” ( ). These buttons have no effect when the Paging Indicator is not displayed.

8Speaker LED Lights steadily when the Speaker is active.

Indicator

9Speaker Accesses the one-way Speaker feature.

10Headset LED Lights steadily when the headset is active.

Indicator

1 of 2

Issue 4 November 2006 13

Image 13
