Page 17

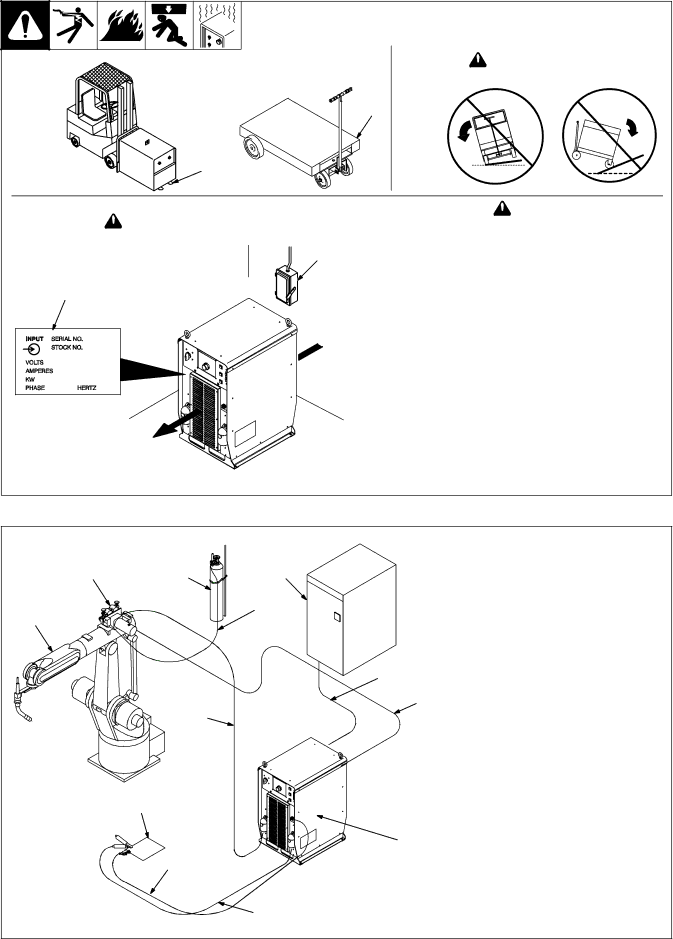

3-5. Selecting A Location

Movement

2

OR

1

Tipping

! Do not move or operate unit where it could tip.

Location

! Special installation may be required where gasoline or volatile liquids are present − see NEC Article 511 or CEC Section 20.

! Do not stack units. Beware of tipping.

1 Lifting Forks

4

3

18 in

(460 mm)

18 in

(460 mm)

Use lifting forks to move unit.

Extend forks beyond opposite side of unit.

2 Hand Cart

Use cart or similar device to move unit.

3 Rating Label

Use rating label to determine input power needs.

4 Line Disconnect Device

Locate unit near correct input power supply.

loc_2 3/96 -Ref. 803 244-B

3-6. Connection Diagram

23

1

12

10

11

5

4

9

6

7

8

.The proper interface kit must be installed in the welding power source/interface unit to allow it to be connected to the robot.

1Robot (Will Vary According To Application)

2Motor/Drive Assembly

3Gas Cylinder

4Gas Hose

5Robot Control

6Robot Input/Output Cable

7Gas And Motor Control Cable

8Welding Power Source/Interface Unit

9Negative (−) Weld Cable

10Workpiece

11Voltage Sensing Lead

Recommended for Accu-pulse and RMD (optional).

.Positive (+) voltage sensing lead is contained in the motor cable.

12 Positive (+) Weld Cable

Ref. 803 244-B / Ref. 801 915-A

OM-210 540 Page 13
