Removal and Replacement Procedures

7.Slide the system board out of the base enclosure at an angle (Figure 5-22).

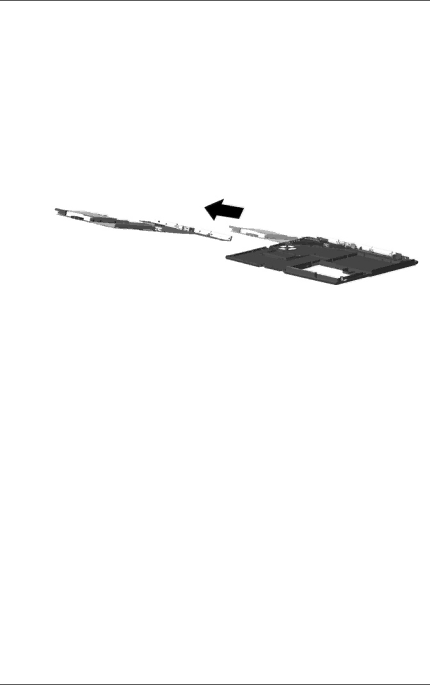

Figure 5-22. Removing the System Board

Reverse the above procedure to install the system board.

5–32	Maintenance and Service Guide

Image 98

Compaq N150 manual Reverse the above procedure to install the system board
