10.6Power History

10.6Power History

The power history is only available when the inverter is blocked; it provides a visual display of the status of the alarms and measurements over a period of 10 seconds before and 1 second after the inverter stops in steps of 0.1 s. The power history is lost when the inverter is restarted.

Figure 28 provides a graphic representation of how to access the Power History.

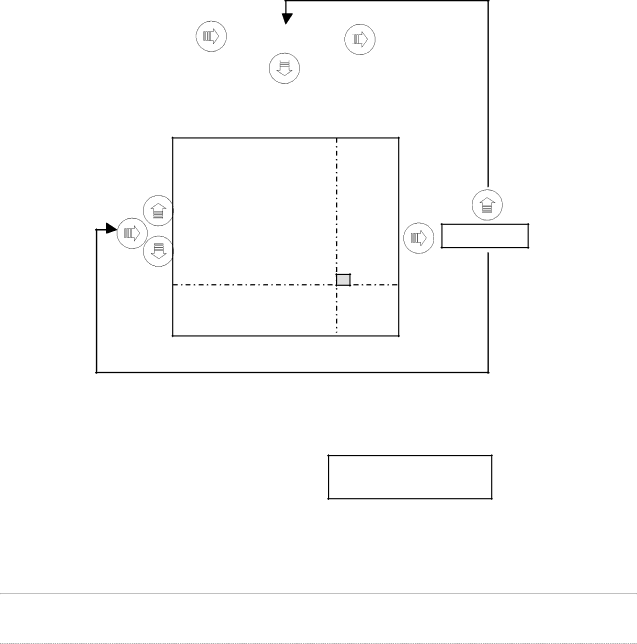

Figure 28: Power History Structure

LOAD

ALARMS

Time

(seconds)

-10

Inverter 0 Shutdown

+1

						BATTERY TEST
	POWER HISTORY					BATTERY TEST
	POWER HISTORY					SELECT
	DOWN TO ACCESS					SELECT

POWER HISTORY MATRIX

Measurements Alarms

POWER HISTORY

UP TO EXIT

Initial

position

Typical Power History Display

Measurement

RECTIFIER	+0.3 SEC
VDC = 327V	IB = 5A

Alarm

-5.3 SEC ON

OVER TEMPERATURE

page 60 --MI00/10056 rev. 8 —05/2006
