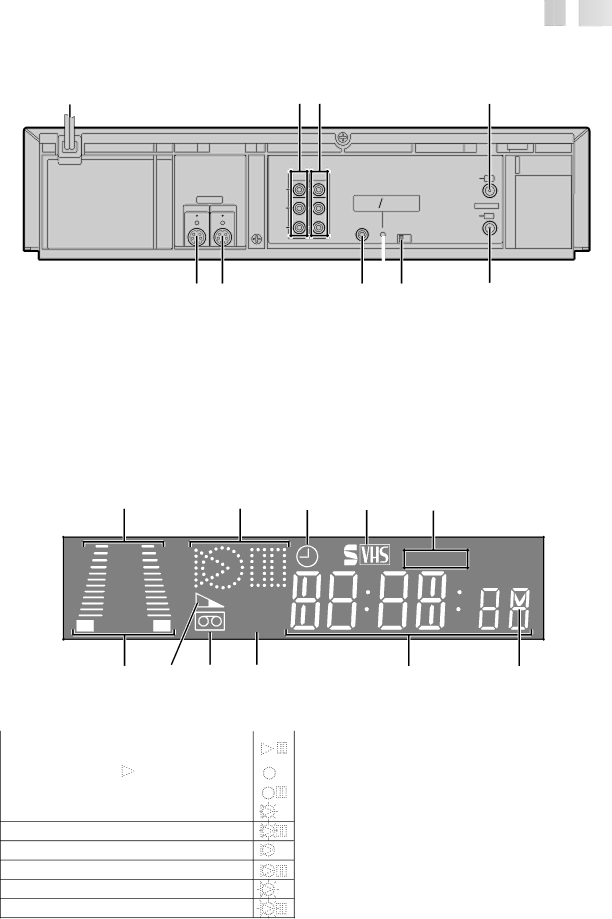

REAR VIEW

1

23

4

		OUT IN
		VIDEO
S VIDEO		(MONO)
OUT	IN	L
		AUDIO
		R

	ANTENNA	IN
REMOTE AV
PAUSE COMPULINK	VHF/UHF
CABLE	TV	OUT
CABLE

BOX

CH3 CH4

5 6

7 89

0

1Power Cord (☞ pg. 6)

2VIDEO/AUDIO Output Connectors (☞ pg. 55)

3 VIDEO/AUDIO Input Connectors (☞ pg. 55)

4 ANTENNA IN Connector (☞ pg. 6)

5 S-Video (S-VHS) Output Connector (☞ pg. 55) 6 S-Video (S-VHS) Input Connector (☞ pg. 55)

7CABLE BOX Controller Connector (☞ pg. 16, 19)

8 REMOTE PAUSE/AV COMPULINK Connector

●REMOTE PAUSE Connector (☞ pg. 56)

●AV COMPU-LINK Connector (☞ pg. 31)

9Channel 3/4 Switch (☞ pg. 6)

0 TV OUT Connector (☞ pg. 6)

FRONT DISPLAY PANEL

1 2 3 4 5

	+8		SP SEP
	4		SP SEP
	0
	6
	–15dB		VCR
L	NORM	R	VCR

6 7 8 9

0

!

1Audio Level Indicators (☞ pg. 44)

2 Symbolic Mode Indicators

		STILL:
PLAY:		SLOW:
FF/REW VARIABLE		RECORD:
SEARCH:		RECORD:

		RECORD PAUSE:
		RECORD PAUSE:

AUDIO DUBBING:

AUDIO DUBBING PAUSE:

INSERT:

INSERT PAUSE:

AUDIO DUBBING INSERT:

AUDIO DUBBING INSERT PAUSE:

3Timer Mode Indicator

4S-VHS Indicator (☞ pg. 41)

5Tape Speed Indicators (☞ pg. 23)

6 Audio Output Mode Indicator

7 Tape Remaining Time Indicator (☞ pg. 40)

8 “Cassette Loaded” Mark

9 VCR Mode Indicator (☞ pg. 40)

0 Channel Display [“L-1” and "F-1" for AUX mode] Counter Display (☞ pg. 22)

Clock Display (☞ pg. 8)

! Child Lock Indicator (☞ pg. 64)
