14.7.17EXTENDED CALL STATION PROGRAMMING
The SM30 system with more than 18 loudspeaker zones needs one Module Frame LBB 1291/40 and eventually one or more Extended Call Stations LBB 9568/36 (Call Station with 36 zone confirmation LEDs). An extended Call Station requires both inputs of the Call Station Input Module.
The Module Frame contains the extra Zone Relay Modules and eventually the extra Control Relay Module(s) and Control Input Module(s).
For detailed information of the Module Frame, see the Instructions for use packed with the Module Frame.

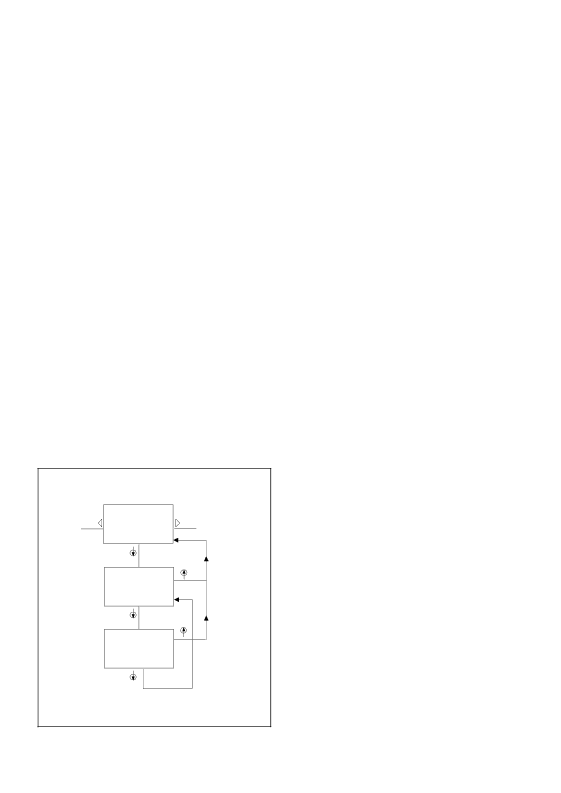

17.1Main menu selection
Select from the main menu by means of the left/right arrow keys:
EXTENDED CALL ST.
17.2Selection Call Station input number
Select the Call Station input number (1, 3 or 5) by means of the up/down arrow keys.
17.3Confirmation
Confirm the used inputs for Extended Call Stations by means of the /O keys.
CST input 1 coupled to input 2. CST input 3 coupled to input 4. CST input 5 coupled to input 6.
1
2
17
SELECT PROGRAM :
EXTENDED CALLST
SELECT ITEM :
CALL STATION : X
3
X=1,3,5
SELECT ITEM :
EXTEND CST: X:-
I/O
Extended Call Station
