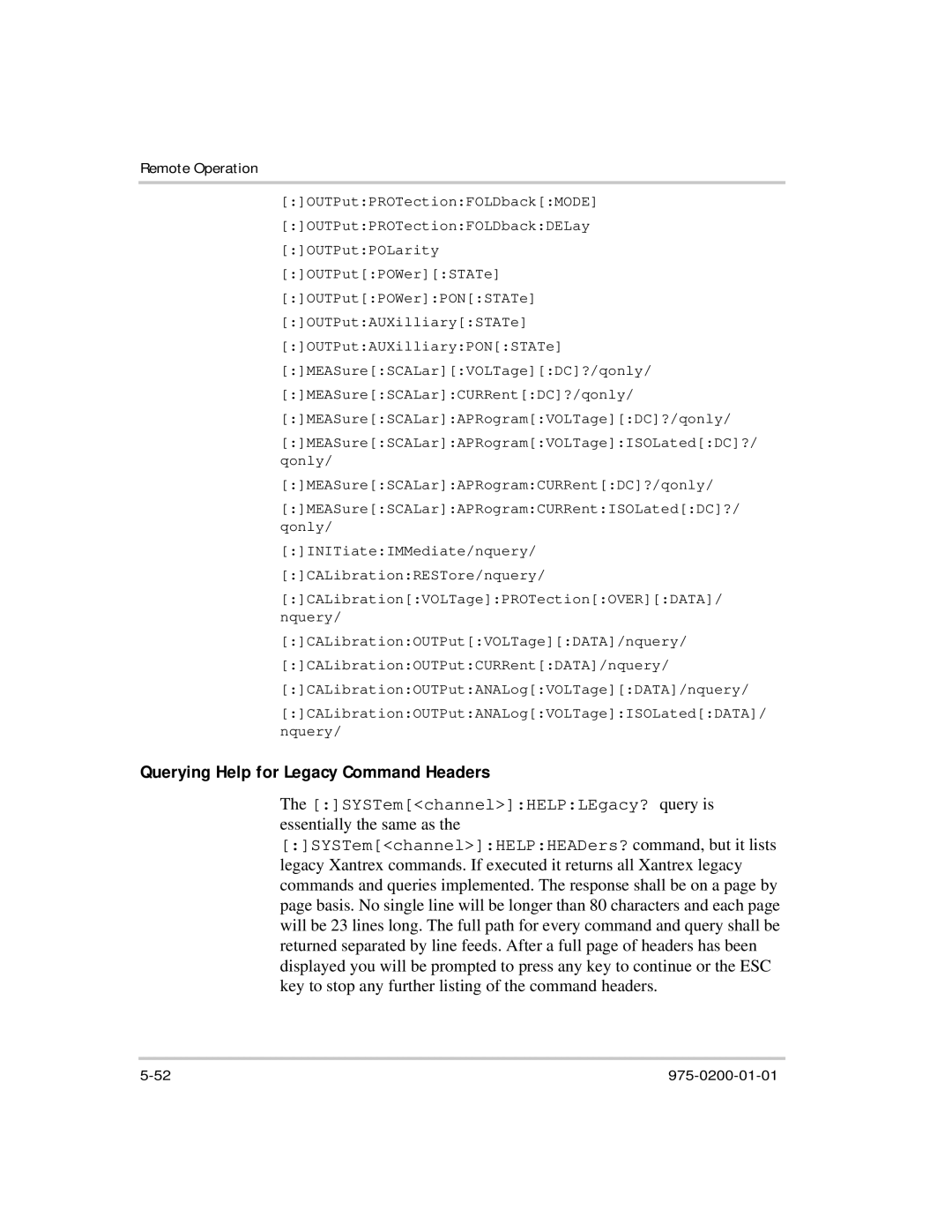

Remote Operation

5-52 975-0200-01-01

[:]OUTPut:PROTection:FOLDback[:MODE]

[:]OUTPut:PROTection:FOLDback:DELay

[:]OUTPut:POLarity

[:]OUTPut[:POWer][:STATe]

[:]OUTPut[:POWer]:PON[:STATe]

[:]OUTPut:AUXilliary[:STATe]

[:]OUTPut:AUXilliary:PON[:STATe]

[:]MEASure[:SCALar][:VOLTage][:DC]?/qonly/

[:]MEASure[:SCALar]:CURRent[:DC]?/qonly/

[:]MEASure[:SCALar]:APRogram[:VOLTage][:DC]?/qonly/

[:]MEASure[:SCALar]:APRogram[:VOLTage]:ISOLated[:DC]?/

qonly/

[:]MEASure[:SCALar]:APRogram:CURRent[:DC]?/qonly/

[:]MEASure[:SCALar]:APRogram:CURRent:ISOLated[:DC]?/

qonly/

[:]INITiate:IMMediate/nquery/

[:]CALibration:RESTore/nquery/

[:]CALibration[:VOLTage]:PROTection[:OVER][:DATA]/

nquery/

[:]CALibration:OUTPut[:VOLTage][:DATA]/nquery/

[:]CALibration:OUTPut:CURRent[:DATA]/nquery/

[:]CALibration:OUTPut:ANALog[:VOLTage][:DATA]/nquery/

[:]CALibration:OUTPut:ANALog[:VOLTage]:ISOLated[:DATA]/

nquery/

Querying Help for Legacy Command Headers

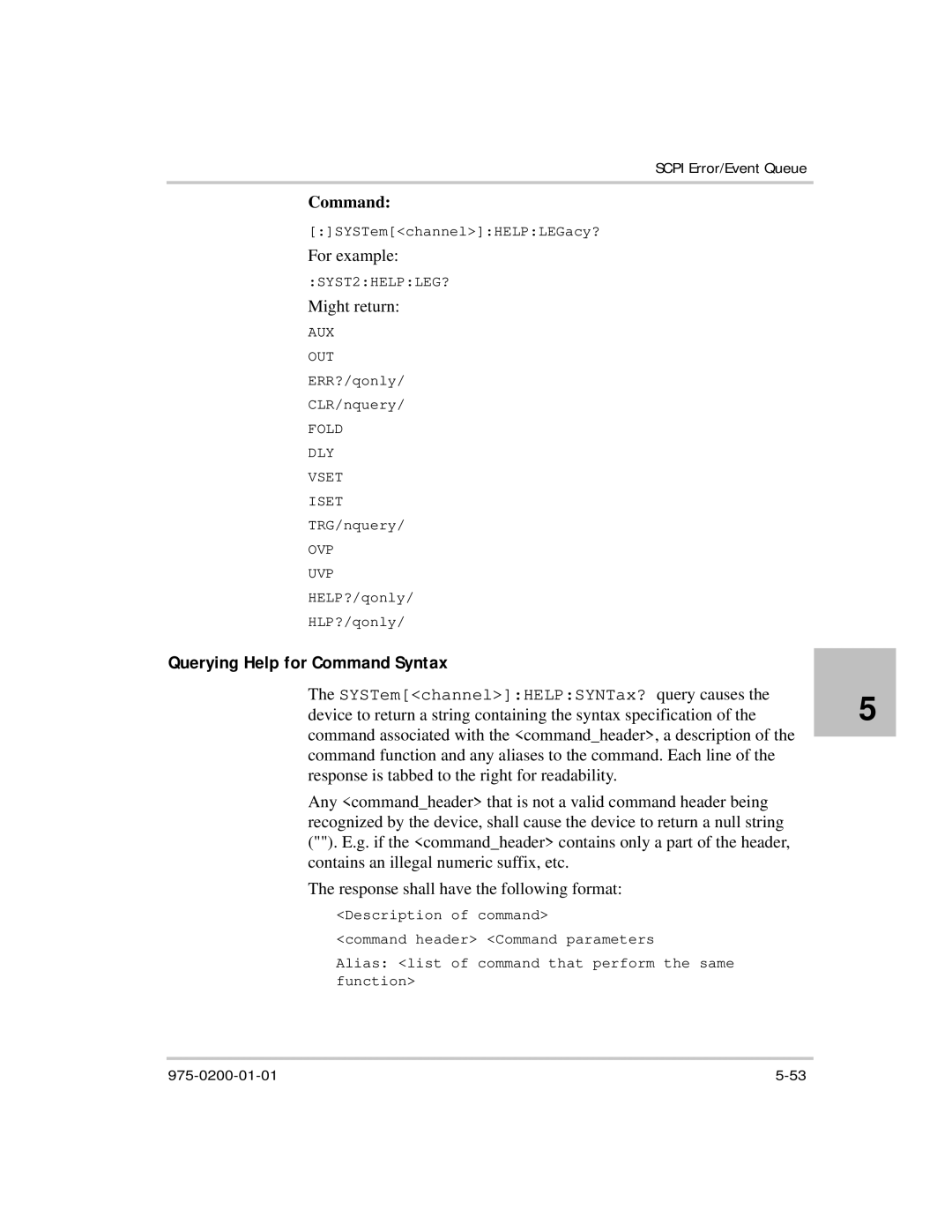

The [:]SYSTem[<channel>]:HELP:LEgacy? query is

essentially the same as the

[:]SYSTem[<channel>]:HELP:HEADers? command, but it lists

legacy Xantrex commands. If executed it returns all Xantrex legacy

commands and queries implemented. The response shall be on a page by

page basis. No single line will be longer than 80 characters and each page

will be 23 lines long. The full path for every command and query shall be

returned separated by line feeds. After a full page of headers has been

displayed you will be prompted to press any key to continue or the ESC

key to stop any further listing of the command headers.
