Zenoah CHTZ2401L-CA, CHTZ2401-CA AIR Filter, Fuel Filter, Spark Plug, Tightening Torque Muffler

Page 34

English

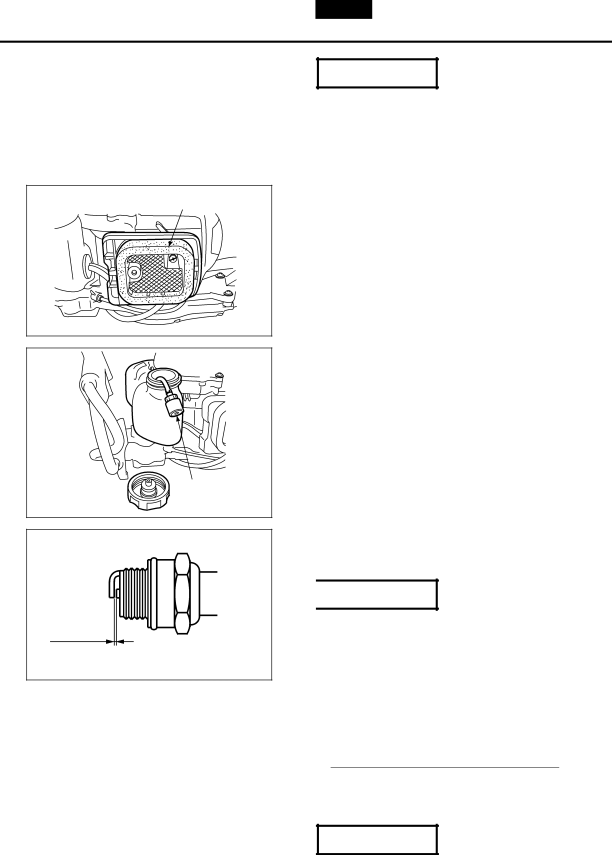

8. Maintenance

WARNING

MA1(1)

MA2

(1)

MA3

.025 in

0.655mm

•Make sure that the engine has stopped and is cool before performing any service to the machine. Contact with moving cutting head or hot muffler may result in a personal injury.

■AIR FILTER

•The air filter, if clogged, will reduce the engine performance. Check and clean the filter element in warm, soapy water as required. Dry completely before installing. If the element is broken or shrunk, replace with a new one. (MA1)

(1) air filter

■FUEL FILTER

•When the engine runs short of fuel supply, check the fuel cap and the fuel filter for blockage. (MA2)

(1) fuel filter

■SPARK PLUG

•Starting failure and mis-firing are often caused by a fouled spark plug. Clean the spark plug and check that the plug gap is in the correct range. For a replacement plug, use the correct type specified by RedMax. (MA3)

•REPLACEMENT PLUG IS NGK CMR7H OR CHAMPION RZ7C.

IMPORTANT

•Note that using any spark plug other than those designated may result in the engine failing to operate properly or in the engine becoming overheated and damaged.

•To install the spark plug, first turn the plug until it is finger tight, then tighten it a quarter turn more with a socket wrench.

TIGHTENING TORQUE:

■MUFFLER

WARNING

87~121 in-lbs (9.8~13.7 N.m.)

•Inspect periodically, the muffler for loose fasteners, any damage or corrosion. If any sign of exhaust

34
