Samsung SCC-C6475(P) manual Indoor Housing SHG-120, Outdoor Housing SHG-220

Page 13

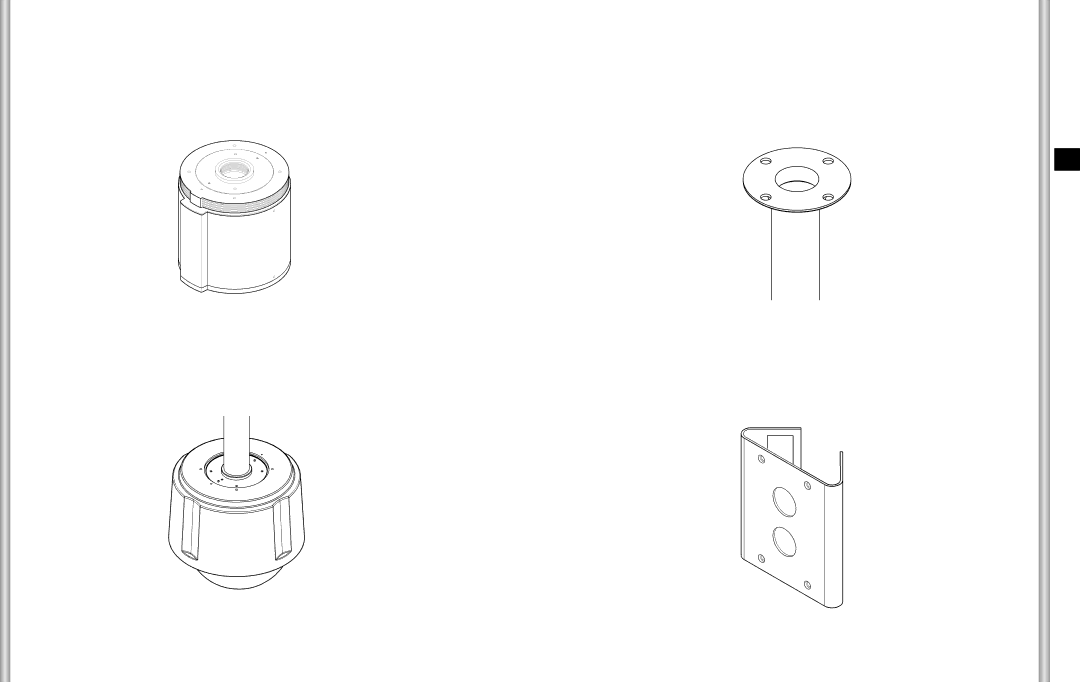

3)INDOOR HOUSING (SHG-120)

This housing is used for installing the IP SmartDome Camera to an indoor wall or a ceiling.

4)OUTDOOR HOUSING (SHG-220)

This housing is used for installing the IP SmartDome Camera to an outdoor wall or a ceiling.

5)CEILING MOUNT ADAPTOR (SADT-100CM)

This adaptor is used for installing the indoor housing or the outdoor housing for the IP SmartDome Camera to a concrete ceiling.

6)POLE MOUNT ADAPTOR (SADT-100PM)

This adaptor is used for installing the WALL MOUNT ADAPTOR (SADT-100WM) to a pole that is over 8 cm (2.76 in.) in diameter.

E

2-6

2-7
