3 Upgrading your system

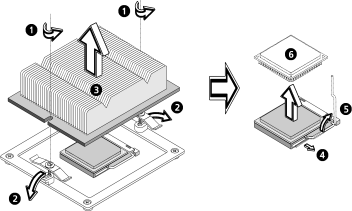

4Loosen the two screws that hold the heatsink to the heatsink base

(1) then flip the clips outward (2). Remove the heatsink (3).

Gently press the socket lever down and slightly outward (4) then pull it up to a 90° angle (5).

Carefully remove the CPU (6).

Installing the CPU

Before you proceed make sure that there is no CPU installed in the CPU socket. Follow the steps below to install a CPU:

1Locate the CPU socket on the mainboard.

2Raise the socket lever up to a 90° angle.
