8.6Decoupling

Preliminary Information

AMD Athlon™ XP Processor Model 8 Data Sheet

25175H— March 2003

8.6Decoupling

See the AMD Athlon™ Processor-Based Motherboard Design Guide, order# 24363, or contact your local AMD office for information about the decoupling required on the motherboard for use with the AMD Athlon™ XP processor model 8.

8.7VCC_CORE Characteristics

Table 12 shows the AC and DC characteristics for VCC_CORE.

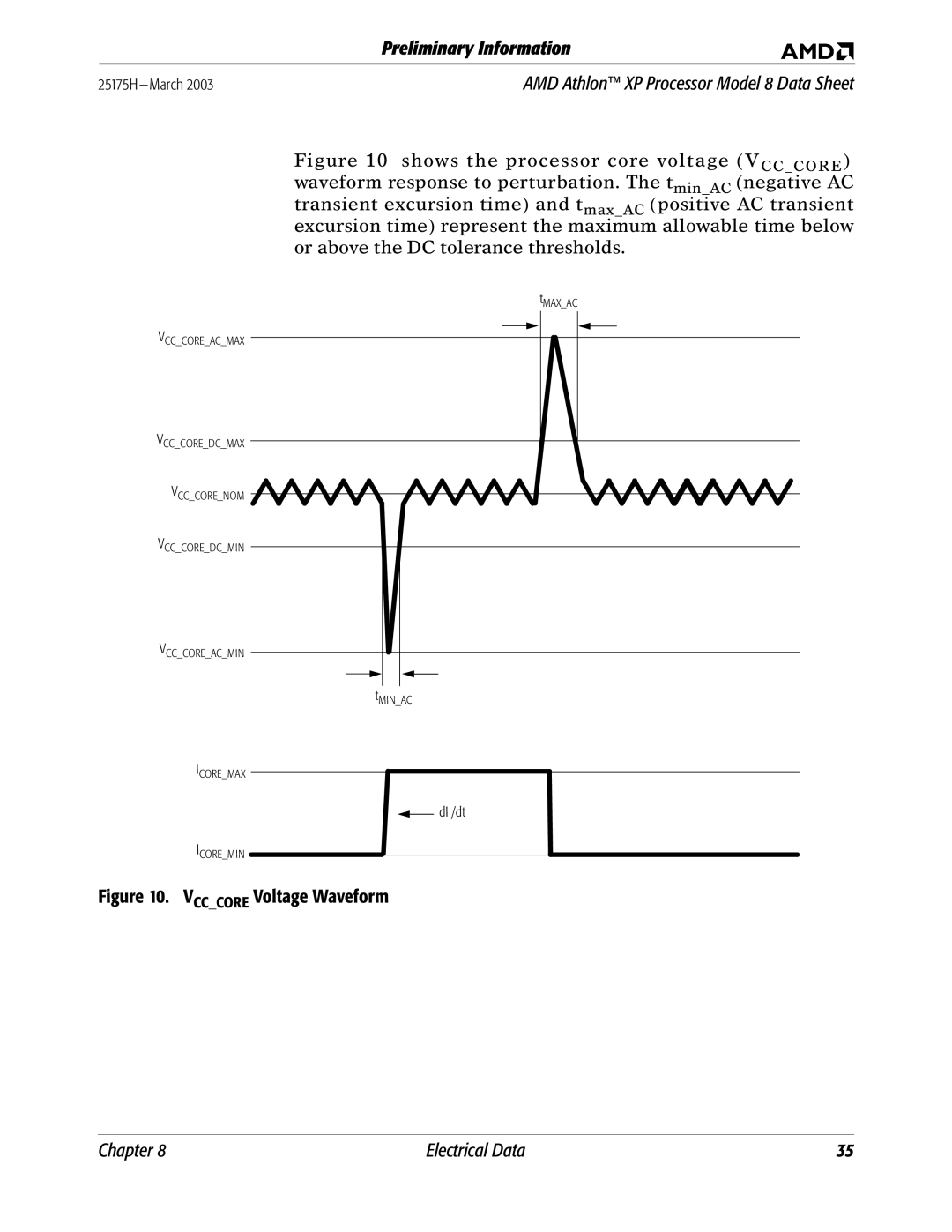

See Figure 10 on page 35 for a graphical representation of the

VCC_CORE waveform.

Table 12. VCC_CORE AC and DC Characteristics

Symbol	Parameter	Limit in Working State	Units

VCC_CORE_DC_MAX	Maximum static voltage above VCC_CORE_NOM*	50	mV
VCC_CORE_DC_MIN	Maximum static voltage below VCC_CORE_NOM*	–50	mV
VCC_CORE_AC_MAX	Maximum excursion above VCC_CORE_NOM*	150	mV
VCC_CORE_AC_MIN	Maximum excursion below VCC_CORE_NOM*	–100	mV
tMAX_AC	Maximum excursion time for AC transients	10	∝s
tMIN_AC	Negative excursion time for AC transients	5	∝s

Note:

* All voltage measurements are taken differentially at the COREFB/COREFB# pins.

34

Electrical Data

Chapter 8
