2.11 Filter Pan Assembly







8



10

11















7



9



2













6





12

4







5



14









13

3







1

ITEM

PART #



COMPONENT

1

108-0184SP

Filter Pan No Rollers July 2008 (Use 106-3796SP Pan with Rollers)

2

810-3161

Crumb Tray

*813-0568 Plug, ⅛” Socket-head Pipe

3

826-1372

Nut, Grip ¼-20 Hex (pkg. of 10)

*

826-1392

O-ring

4

810-2198

Roller, Filter Pan Rail

*

809-1025

Nylon Slides

*826-2603 Rail Set, Filter Pan Rail

*826-1979 Kit, Filter Pan Roller

*809-0191 Washer, Spring Lock, ¼”

5812-2024 Screen, Sana Grid

6810-3760 Ring, Hold Down (810-2910, FMP, see also 810-3760)

7823-6412 Lid, Filter Pan, FPP (included in kit 826-2109, 826-2110, and 826-2111)

*823-5334 Lid, Filter Pan, FMPH

8823-5294 Splash Shield (included in kit 826-2109, 826-2110, and 826-2111)

9106-5141 Bracket, Burner Heat Shield Mounting (MJ35)

10809-0173 Clip, Tinnerman (included in kits 826-2109, 826-2110, and 826-2111)

11200-9732 Lip, Suction Fitting (included in kits 826-2109, 826-2110, and 826-2111)

12200-9715 Brace, Drain Spout (included in kits 826-2110 and 826-2111)

13826-1371 Screw, #8 x ½” Hex Head Drill Point (pkg. of 25)

14809-0785 Screw, #14 x ¾” Slotted Head

*200-6310 Support, Rear Pan Rail

*809-0743 Screw, 4-40 x 1 Pan Head, Stainless Steel

*803-0170 Filter Paper, 19.5 x 25.5 (box of 100 sheets)

*803-0002 Filter Powder (box of 80 individual packs)

*810-2800 Carl’s Jr. Filter Leaf

*816-0757 O-ring, Optional Filter Leaf

*Not illustrated.

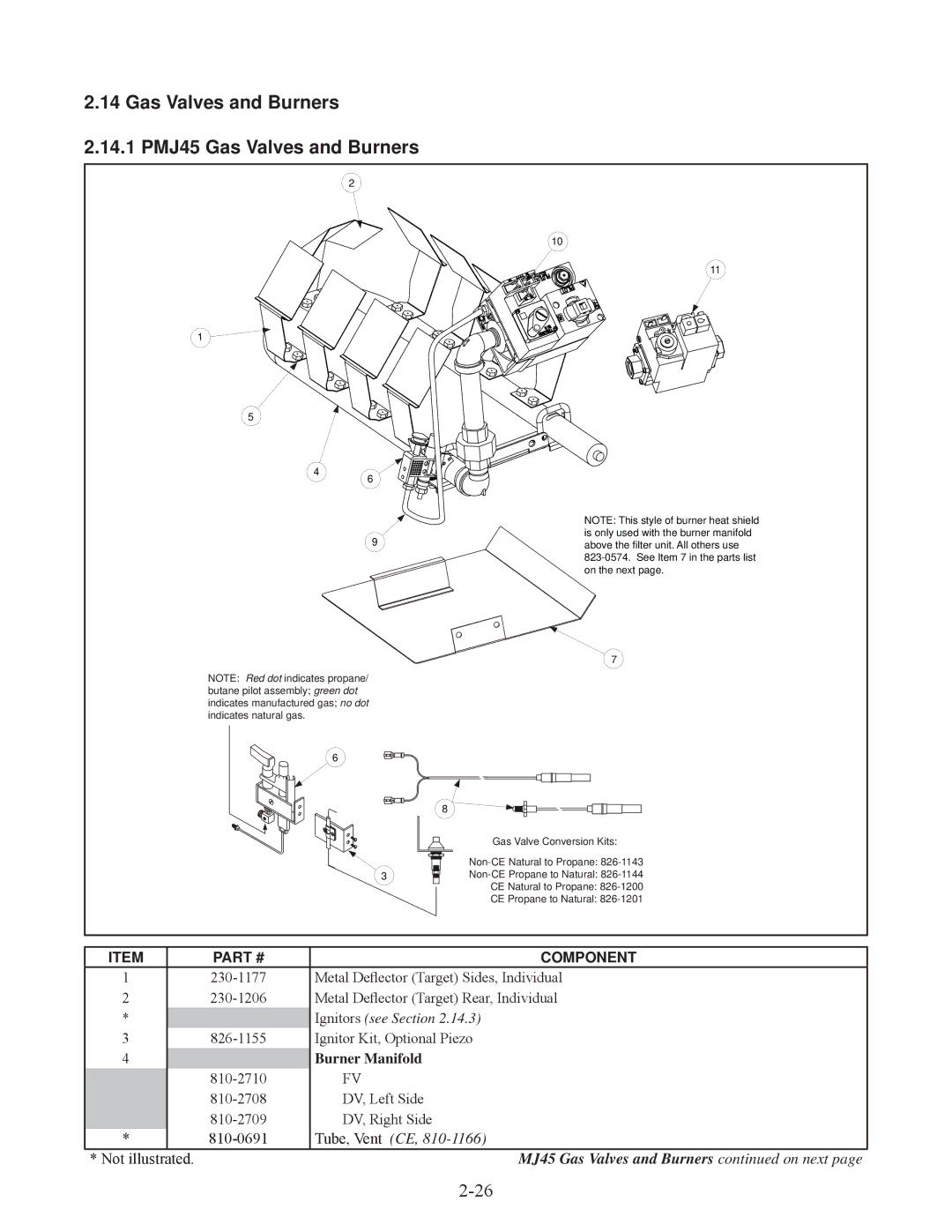

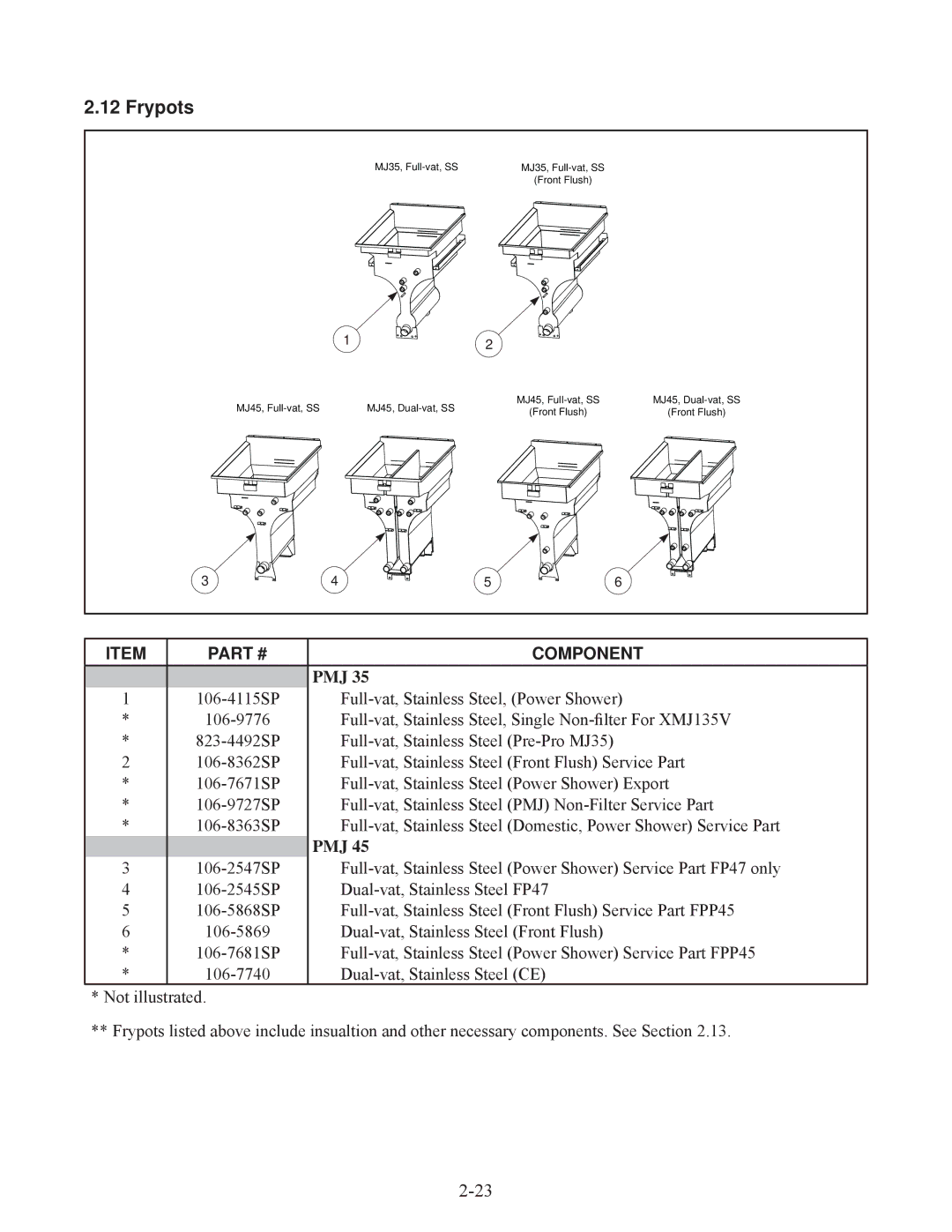

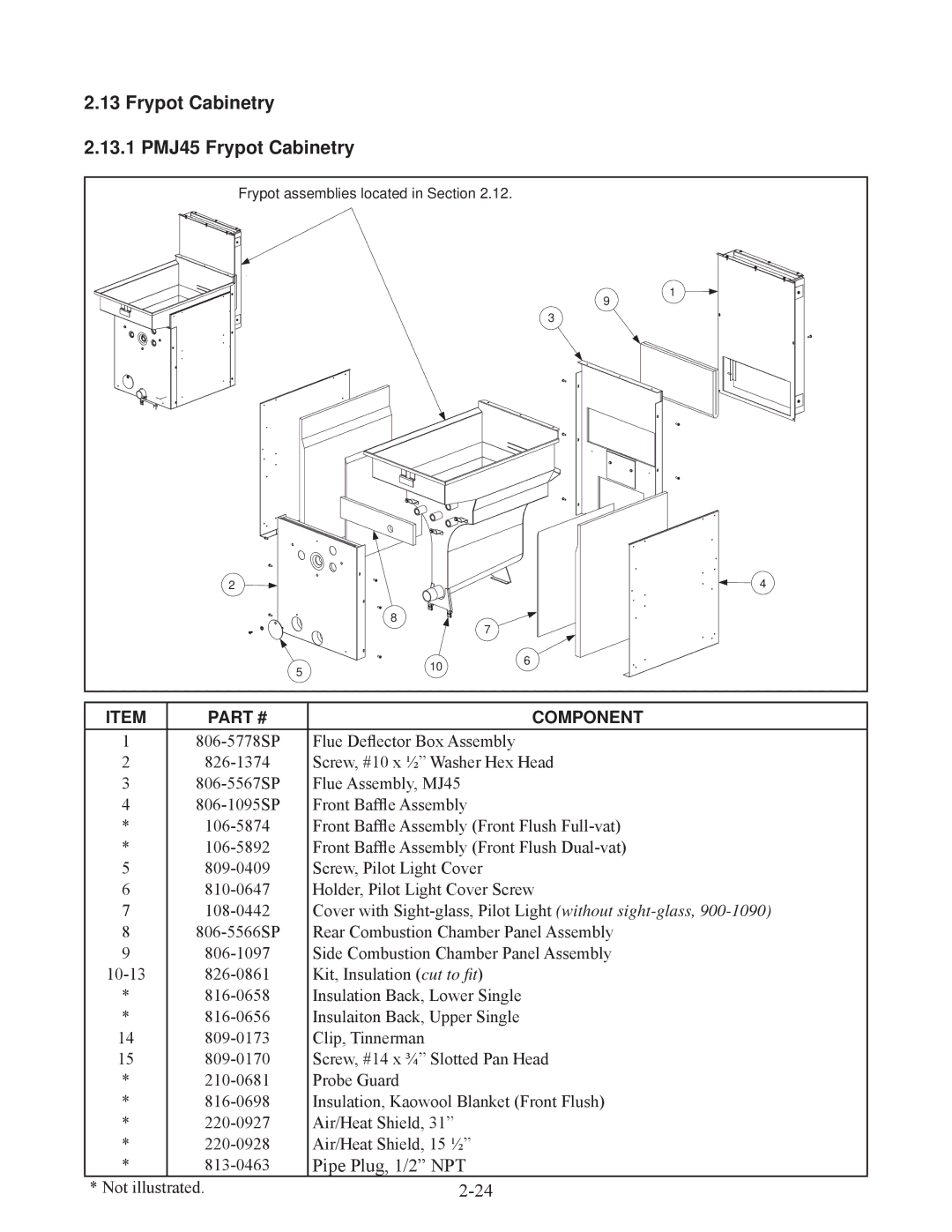

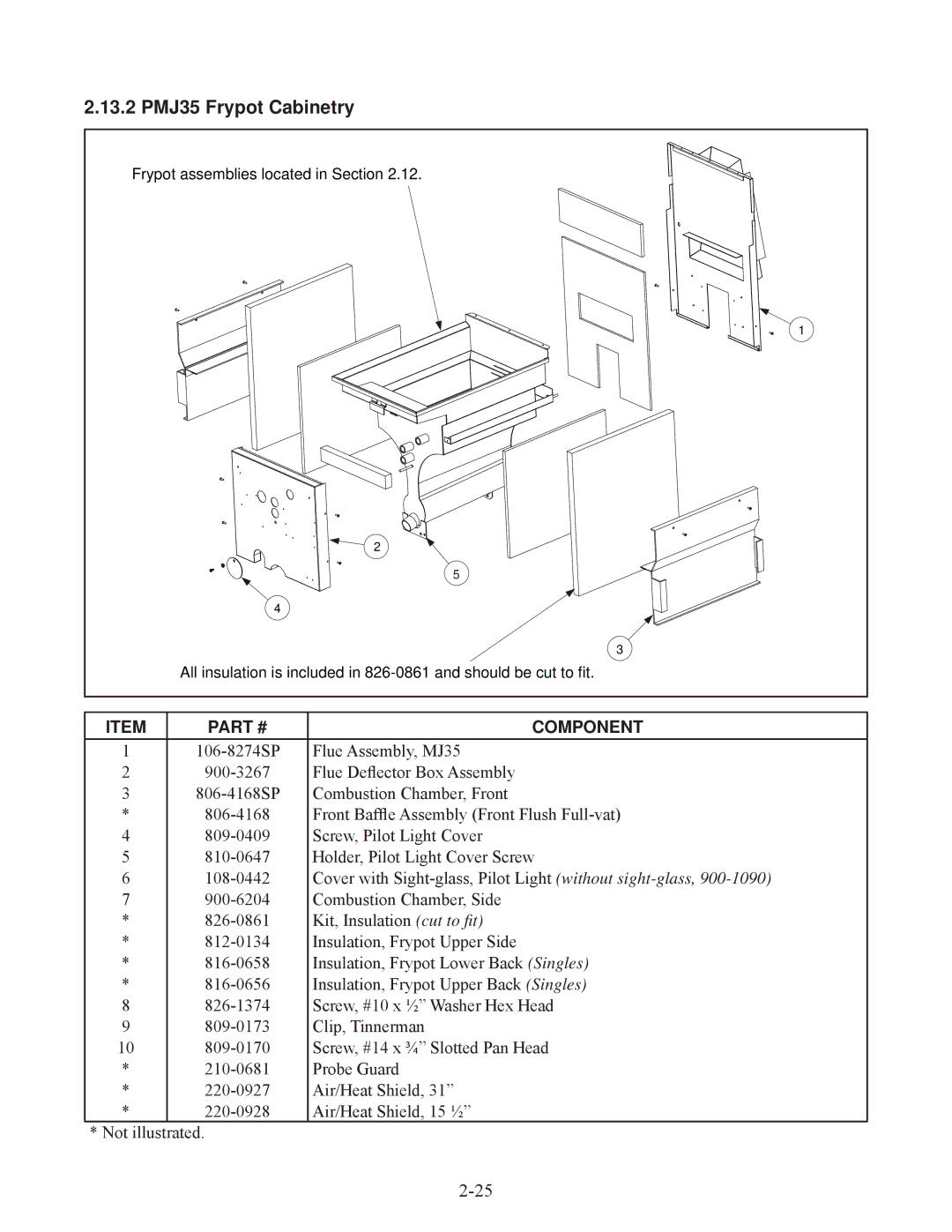

2-22
