Program catalog

Open Program catalog

The Program catalog is where you create, edit, delete, send, receive, or run programs. This section describes how to

•open the Program catalog

•create a new program

•enter commands from the program commands menu

•enter functions from the MATH menu

•edit a program

•run and debug a program

•stop a program

•copy a program

•send and receive a program

•delete a program or its contents

•customize an aplet.

1.Press >6+,)7@PROGRM.

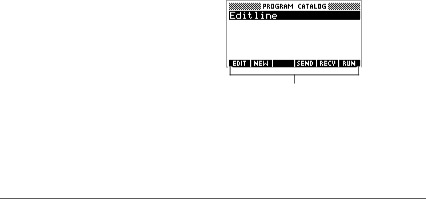

The Program catalog displays a list of program names. If you haven't created any programs, the only name you'll see is Editline.

Editline contains the last expression that you entered from the edit line in HOME, or the last data you entered in an input form. (If you press >(17(5@ from HOME without entering any data, the HP 39G/40G runs the contents of Editline.)

Editline is

abuilt-in function.

Program catalog menu

Before starting to work with programs, you should take a few minutes to become familiar with the Program catalog menu keys. You can use any of the following keys (both menu and keyboard), to perform tasks in the Program catalog.

15-2	Programming
