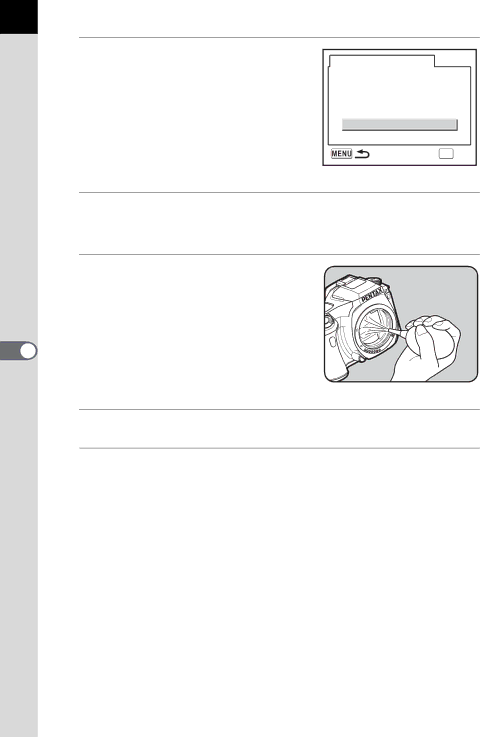

182 Press the four-way controller (2) to select [Mirror Up].

Sensor Cleaning

Mirror Up to Clean CCD

Turn the power OFF

to end

Mirror Up

Cancel

OK OK

6 Appendix

Press the 4button.

The mirror is locked in the up position.

Clean the CCD.

Use a brush-less blower to remove dirt and dust from the CCD. Using a blower with a brush may scratch the CCD. Do not wipe the CCD with a cloth.

Turn the camera off.

Attach the lens after the mirror returns to its original position.
