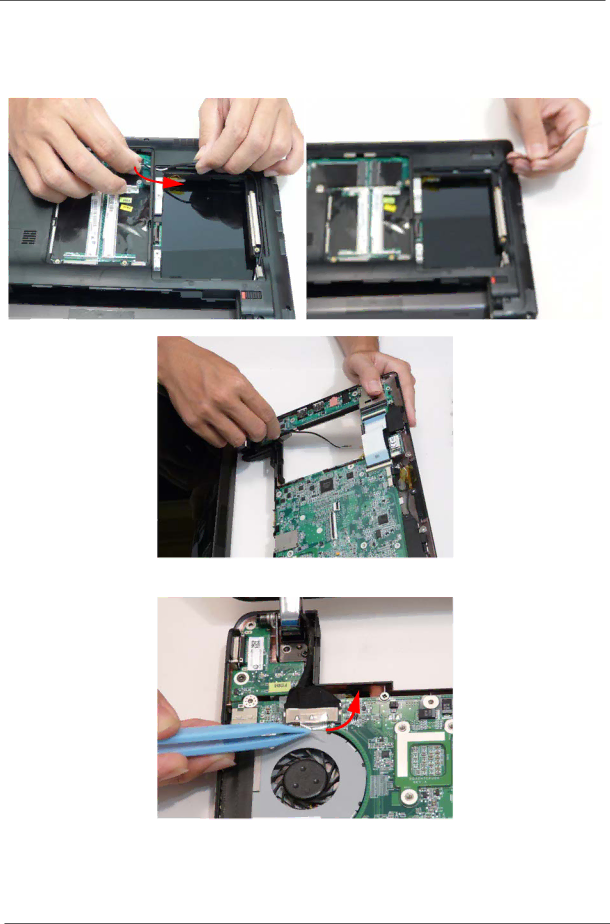

Removing the LCD Module

1.See “Removing the Upper Cover” on page 57.

2.Pull the WLAN cables through and away from the computer.

3.Lift the transparent adhesive tape off the LCD connector.

Chapter 3
