Removal and Replacement Procedures
5.13 Heat Sink
Spare Part Number Information
Heat sink (includes grease) | |
|
|
1.Prepare the notebook for disassembly (refer to Section 5.3).
2.Release the keyboard (refer to Section 5.9).
3.Remove the five T8M2.0×4.0 screws 1 that secure the heat sink to the notebook.
4.Lift the front edge of the heat sink 2 to unseat the adhesive grip of the thermal grease on the processor.
5.Swing the heat sink in a counterclockwise motion 3 until the back of the heat sink 4 clears the notebook.

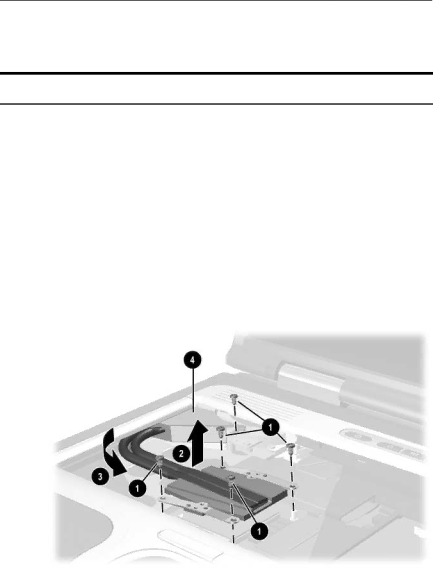

Removing the Heat Sink
6. Remove the heat sink.
Maintenance and Service Guide |
