Removal and Replacement Procedures

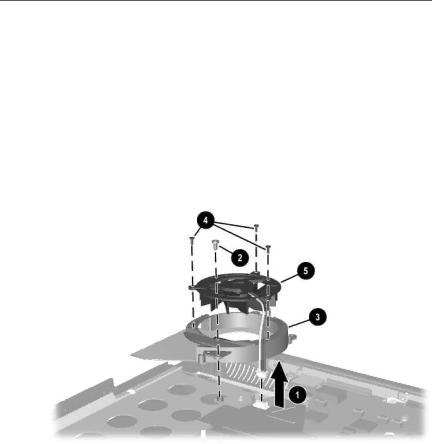

2.Disconnect the fan cable 1.
3.Remove the T8M2.0×4.0 screw 2 that secures the fan assembly to the notebook.
4.Remove the fan assembly 3 from the notebook.
5.Remove the three PM1.5×4.0 screws 4 that secure the fan to the fan housing.
6.Remove the fan 5.
Removing the Fan
Reverse the above procedure to install the fan.
