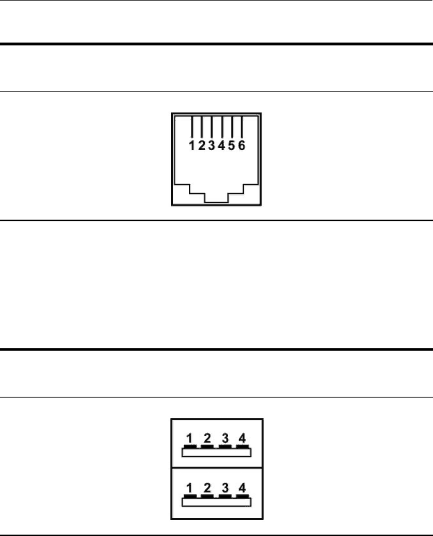

Connector Pin Assignments
Table A-2
RJ-11 Modem
Pin | Signal | Pin | Signal |
|
|
|
|
1 | TX+ (ISDN modem) | 4 | Ring (modem) |
|
|
|
|
2 | TX- (ISDN modem) | 5 | RX+ (ISDN modem) |
|
|
|
|
3 | Tip (modem) | 6 | RX- (ISDN modem) |
|
|
|
|
Table A-3
Universal Serial Bus
Pin | Signal | Pin | Signal |
|
|
|
|
1 | +5 VDC | 3 | Data + |
|
|
|
|
2 | Data – | 4 | Ground |
|
|
|
|
