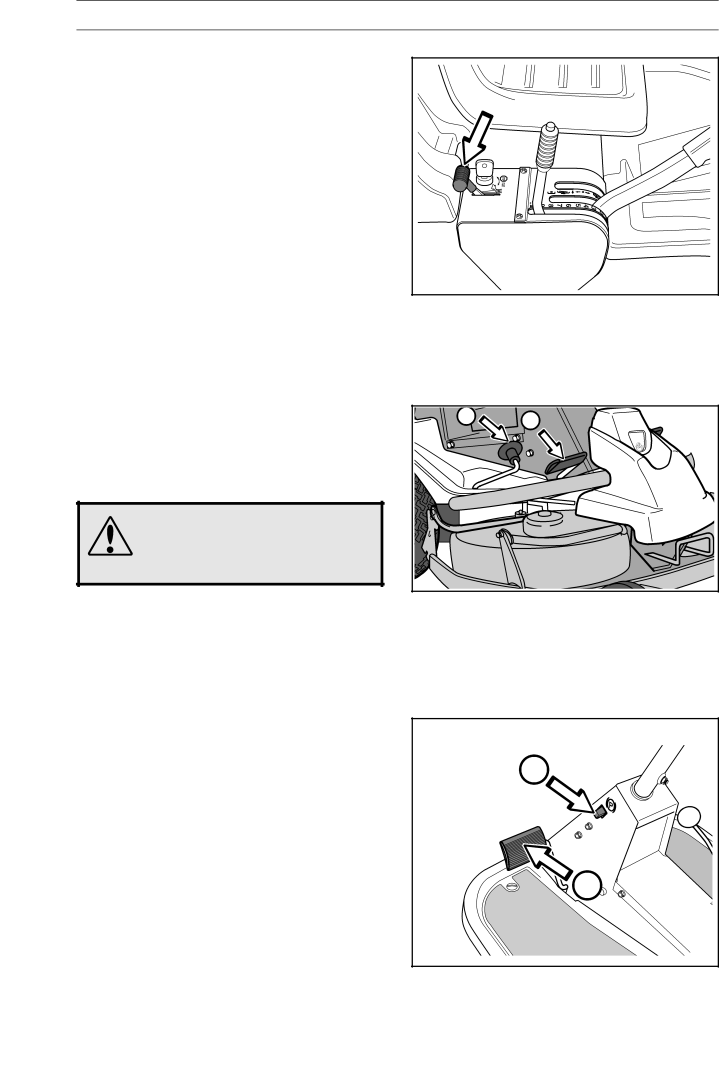

CONTROLS

Throttle and Choke lever

The engine speed is adjusted with the throttle control, and thereby also the rotation speed of the blades.

The control is also used to activate the choke function. When the choke is used the engine receives a richer mixture of fuel and air, which simplifies cold start.

6004-004H

Speed limiter

The speed of the machine is steplessly regulated with two pedals. Pedal (1) is used to drive forwards and pedal (2) for reversing.

WARNING!

Make sure that branches do not obstruct the pedals when mowing under bushes, otherwise you may lose control.

Parking brake

The parking brake is activated as follows:

1.Press down the parking brake pedal (1).

2.Press in the lock button (2) on the steering column.

3.Release the parking brake pedal while keeping the button pressed in.

The parking brake lock is automatically disengaged when the parking brake pedal is pressed down.
