Assembly Guide

Step 6 - Attach the Seat Rail to the Seat Assembly

Locate the following items:

•From Step 5 - Seat Pad/Seat Bracket Assembly

•Item #9 - Seat Rail

Undo the twist ties from the Rail Pivot Bushings and remove the Bushings. Set aside until the end of this step.

Line up the Seat Rail (Item #9) with the Seat Assembly (from Step 5). Orient the Seat Rail so that the Pull Pin on the Seat Bracket is on the same side as the holes in the Seat Rail.

Pull out the Pull Pin on the Seat Bracket, and then insert the Seat Rail through the Seat Bracket, (see Figure 6).

To adjust the Seat, slide the Seat until the Pull Pin is aligned with one hole, then release the Pull Pin into the hole.

Once you have attached the Seat Assembly to the Seat Rail, reinstall the Rail Pivot Bushings that you removed at the beginning of this step.

Note: See Step 22 to adjust the Seat Bracket.

Step 7 - Attach the Rear Leg to the Rear Leg Cross Tube

Locate the following items:

•Item #10 - Rear Leg - Do not unwrap cables!

•Item #11 - Rear Leg Cross Tube

•Item #H - (2) 3/8" X 3" Button Head Screws

•Item #N - (4) 3/8" Washers

•Item #O - (2) 3/8" Nylock Nuts

Line up the holes in the bracket on the Rear Leg (Item #10) with the holes in the Rear Leg Cross Tube (Item #11) as shown in Figure 7.

Place (2) 3/8" Washers (Item #N) over the end of (2) 3/8" X 3" Button Head Screws (Item #H) - one per each screw. Insert the screws through the lined up holes, and secure by placing

(1)3/8" Washer and (1) 3/8" Nylock Nut (Item #O) over the end of each screw, as shown in Figure 7.

Completely tighten hardware installed during Step 7.

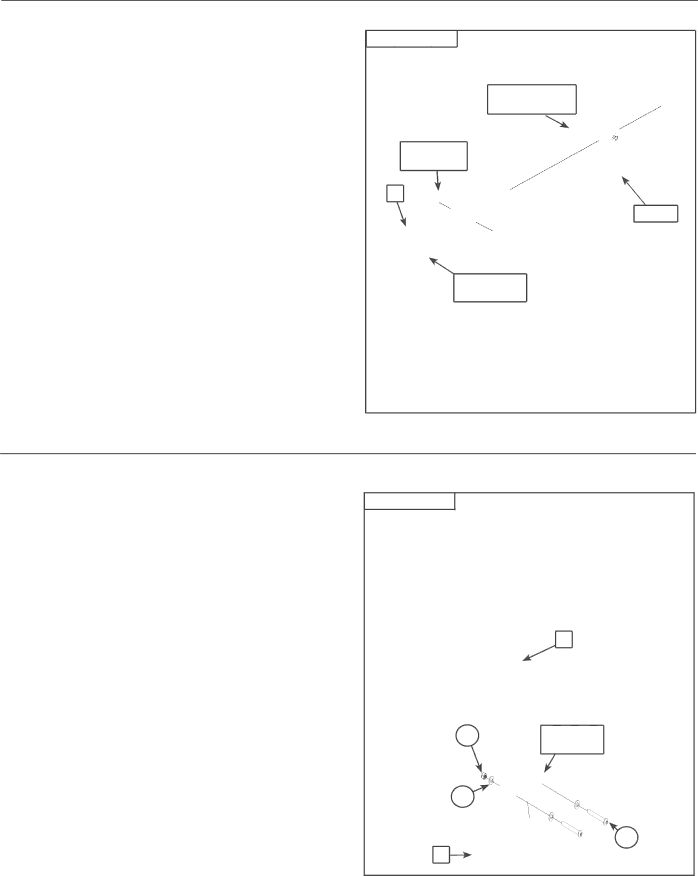

Figure 6

Seat Pad/Seat

Bracket Assembly

Rail Pivot

Bushings

9

Pull Pin

Holes in the

Seat Rail

Figure 7

10

O

Rear Leg



Bracket

N

H

11

8
