Displaying the Data Code

The camcorder maintains a data code containing recording date and time and other camera data such as shutter speed, gain and exposure (f-stop). When you play back a tape, you can display the data code and select the data code combination you wish to display.

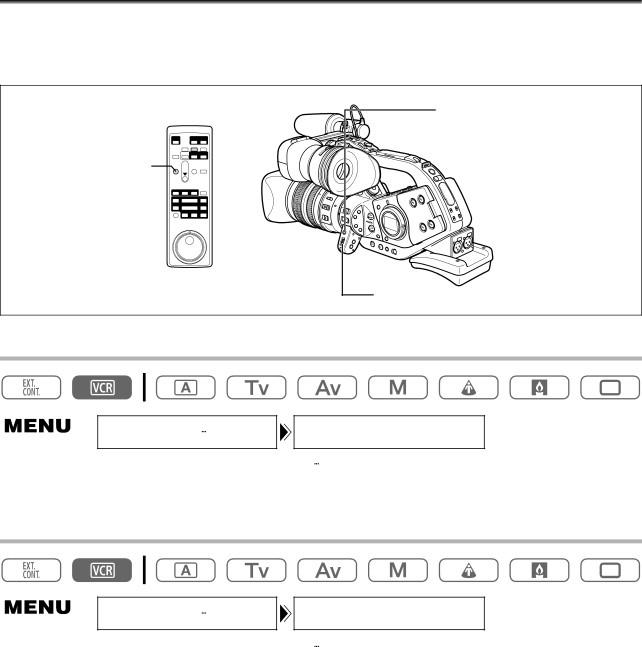

DATA CODE button

MENU button SET button

MENU button

SET dial

Selecting the Date/Time Display Combination

( 24)

DISPLAY SETUP/

D/TIME SEL.••DATE & TIME

Open the menu and select [DISPLAY SETUP/ ]. Select [D/TIME SEL.], set it to [DATE] or [TIME] and close the menu.

Selecting the Data Code Display Combination

( 24)

DISPLAY SETUP/

DATA CODE••••DATE/TIME

Open the menu and select [DISPLAY SETUP/ ]. Select [DATA CODE], set it to [CAMERA DATA] or [CAM.& D/T] and close the menu.

90

Image 90

Cannon XL2 instruction manual Displaying the Data Code, Selecting the Date/Time Display Combination
