Screw listing | HP HDX 16 specs

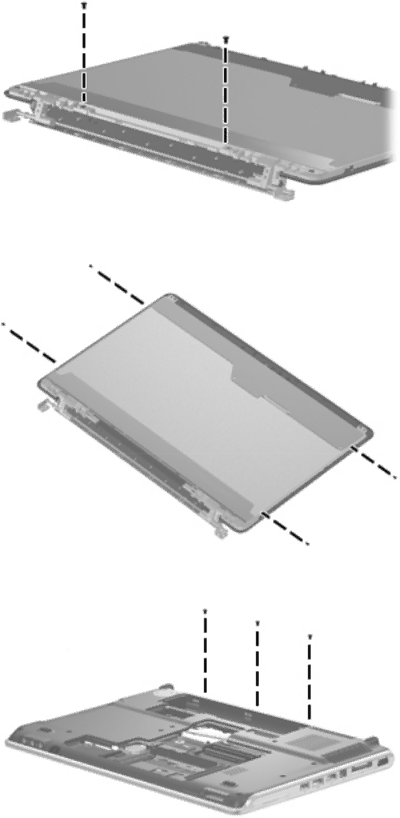

Where used: 2 screws that secure the display hinge bracket to the display panel

Where used: 4 screws that secure the display hinges to the display panel

Where used: 3 screws that secure the top cover to the base enclosure

Screw listing

7–7

Image 118

HP HDX 16 manual Screw listing
