HP HDX 16 Connector pin assignments, Audio-in(microphone)

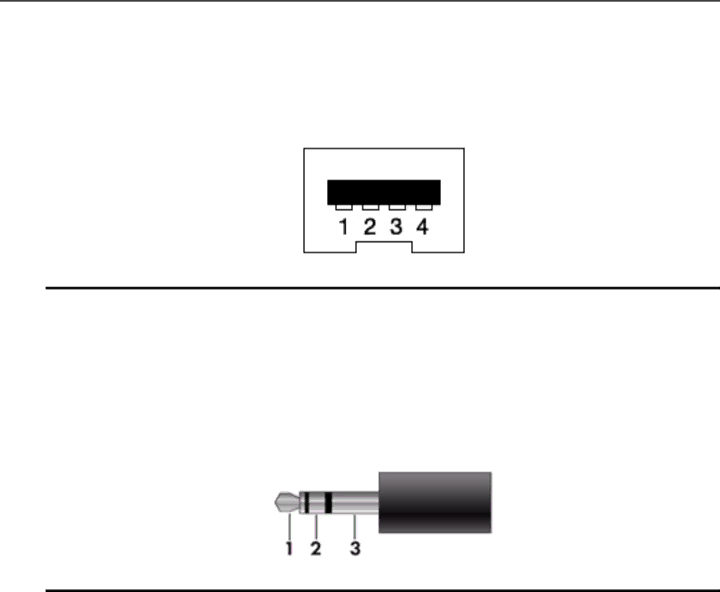

Connector pin assignments

1394

Pin	Signal

1	TPB-

2	TPB+

3	TPA-

4	TPA+

Audio-in (microphone)

Pin	Signal

1	Audio signal in

2	Audio signal in

3	Ground

Connector pin assignments

9–1
