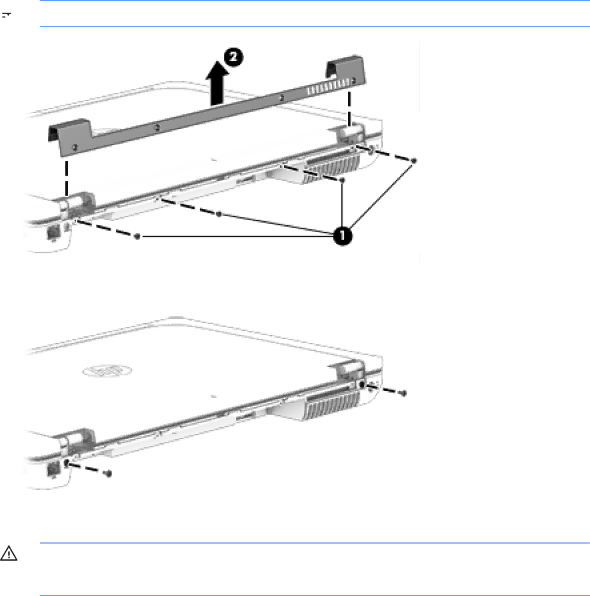

6.Remove the four Torx T8M2.5x3.0 screws (1) that secure the clutch cover to the computer, and then lift the cover from the computer (2).
NOTE: The clutch cover is available using spare part number
7.Remove the two Torx T8M2.5x7.0 screws that secure the display panel to the computer.
8.Position the computer upright and open as far as possible.
CAUTION: Support the display assembly when removing the display screws in the following steps. Failure to support the display assembly can result in damage to the assembly and other components.
9.Remove the two Torx T8M2.0x5.0 screws (1) that secure the display panel cable bracket to the system board, and then lift the bracket off the system board (2).
10.Pull up on the display cable to disengage the adhesive that secures it to the base enclosure (3).
