Removing and Installing Hot Swap Drive(s)

Removing Hot Swap Drive(s)

1.Rotate the black lever downwards to unlatch the drive carrier. With the black lever open, remove the drive carrier from the drive cage.

AF000593

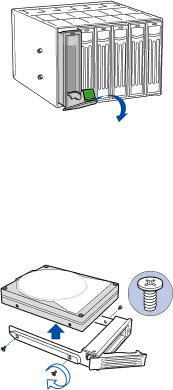

Figure 41. Releasing Drive Carrier from Hot Swap Cage

2.Remove the four screws securing the hard drive to the drive carrier. Remove the hard drive from the drive carrier.

AF000595

Figure 42. Removing Hard Drive from Drive Carrier

42
