Capacity tray | Sharp AR-C250 instruction

Misfeed removal

MISFEED HAS OCCURRED.

CLEAR	INDICATED AREA.
PRESS	FOR RECOVERY INSTRUCTIONS.

Release lever

Upper right

side cover

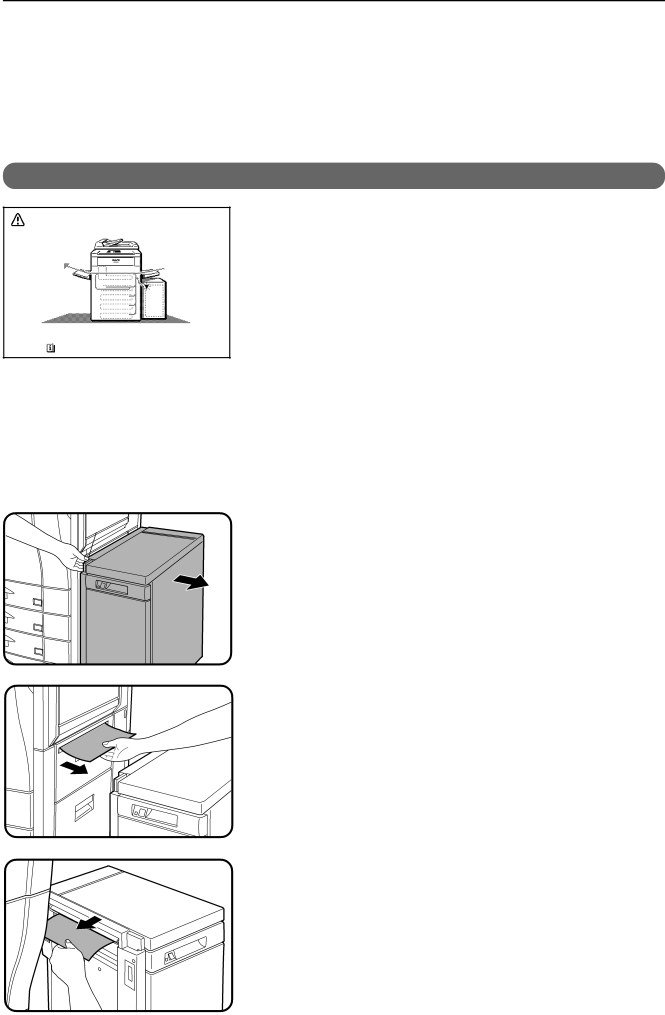

LARGE CAPACITY TRAY (AR-LC2)

The copier will stop when a misfeed occurs.

The message “MISFEED HAS OCCURRED. CLEAR INDICATED AREA. PRESS FOR RECOVERY INSTRUCTIONS.” will appear with a display of paper misfeed locations. Press the INFORMATION key for more detailed information as necessary.

While holding the tray release lever, carefully slide the

1 large capacity tray away from the copier until it stops.

	Remove any misfed paper from the copier and the large	Largecapacity	OPTIONAL
	2 capacity tray.	tray(AR-LC2)	EQUIPMENT
	● Be sure not to tear the misfed paper during removal.	tray(AR-LC2)	EQUIPMENT
	● Be sure not to tear the misfed paper during removal.
	● Open and close the upper right side cover of the copier after
	removing the misfed paper from the copier.
	If the misfed paper cannot be removed easily, open the upper

	right side cover to remove the paper.	CHAPTER7
		CHAPTER7

7-17
