Changing the copy paper size in the tray | Sharp AR-C250 guide

PAPER

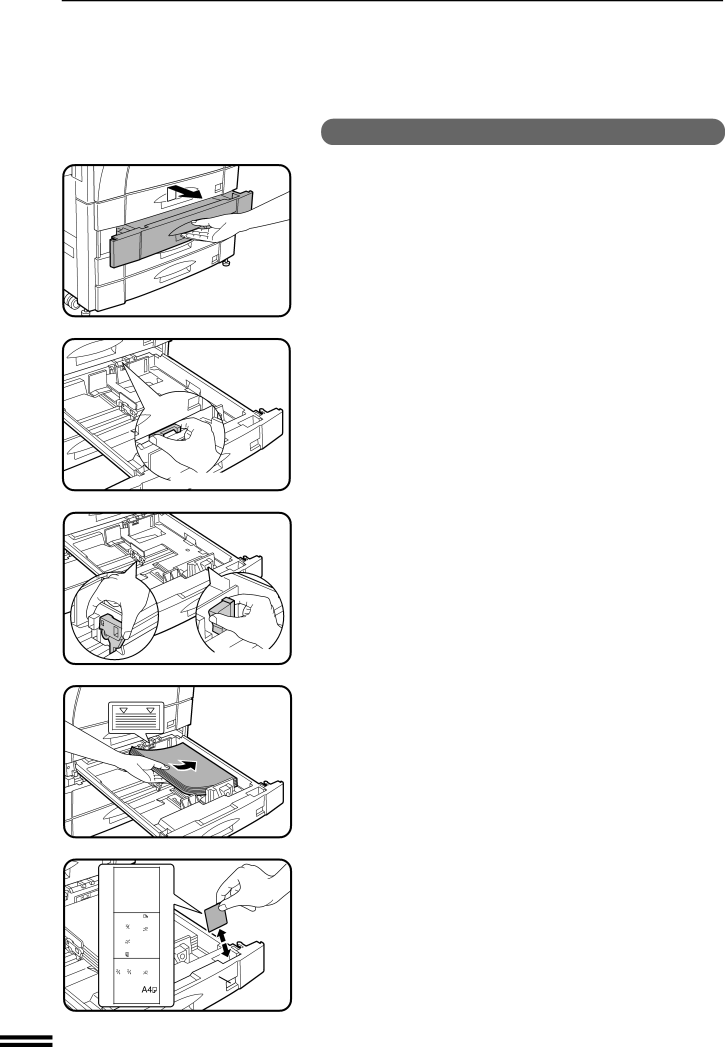

Changing the copy paper size in the tray

1 Gently lift and pull out the paper tray until it stops.

CHAPTER4

Adjust the paper size indicator to match the paper size

2 to be set.

●Slide the paper size indicator to the right or left to match the paper size.

Paper size indicator

SUPPLIES Paper

3

Left guide

Front guide

Adjust the front guide and left guide while squeezing their lock levers.

●Slide the front and left guides to match the width and length of the copy paper.

Maximum height line	4	Load copy paper into the tray.

	x14	8	x11
			8
	8

	x11		11x17

	x8	5	x13
			8

Place the paper size card in the front of the paper tray.

5 ● The paper size card has three faces. Fold the card properly to show the selected paper size. The paper size indication which shows through the slot on the front of the copier should match the selected paper size.

Paper size card	6	Push the paper tray firmly back into the copier.
	6

4-4

Image 84

Sharp AR-C250 operation manual Changing the copy paper size in the tray, Load copy paper into the tray
