Press the Mirror Image key on the touch panel | Sharp AR-C250

IMAGE EDITING FUNCTIONS

READY TO COPY.			Press the “MIRROR IMAGE” key on the touch panel.
READY TO COPY.			4 ● The “MIRROR IMAGE” key will be highlighted.
SPECIAL MODES		OK	4 ● The “MIRROR IMAGE” key will be highlighted.
IMAGE EDIT		OK
SINGLE COLOR	NEG./POS.	MIRROR
SINGLE COLOR	REVERSE	IMAGE
	REVERSE	IMAGE
PHOTO REPEAT	11 17	MULTI-PAGE
PHOTO REPEAT	FULL-BLEED	ENLARGEMENT
	FULL-BLEED	ENLARGEMENT
EXTRA SIZE

CHAPTER3 SPECIAL FUNCTIONS

			OK
			OK
NEG./POS.		MIRROR
REVERSE		IMAGE
11 17		MULTI PAGE
N
1	2	3	INTERRUPT
1	2	3
4	5	6	CLEAR	CA
			CLEAR
			ALL
7	8	9
AUDIT	0	PROGRAM	C
	0	P	CLEAR

3 INTERRUPT

6

CLEAR CA

ALL

9

PROGRAM C

P CLEAR

5

6

7

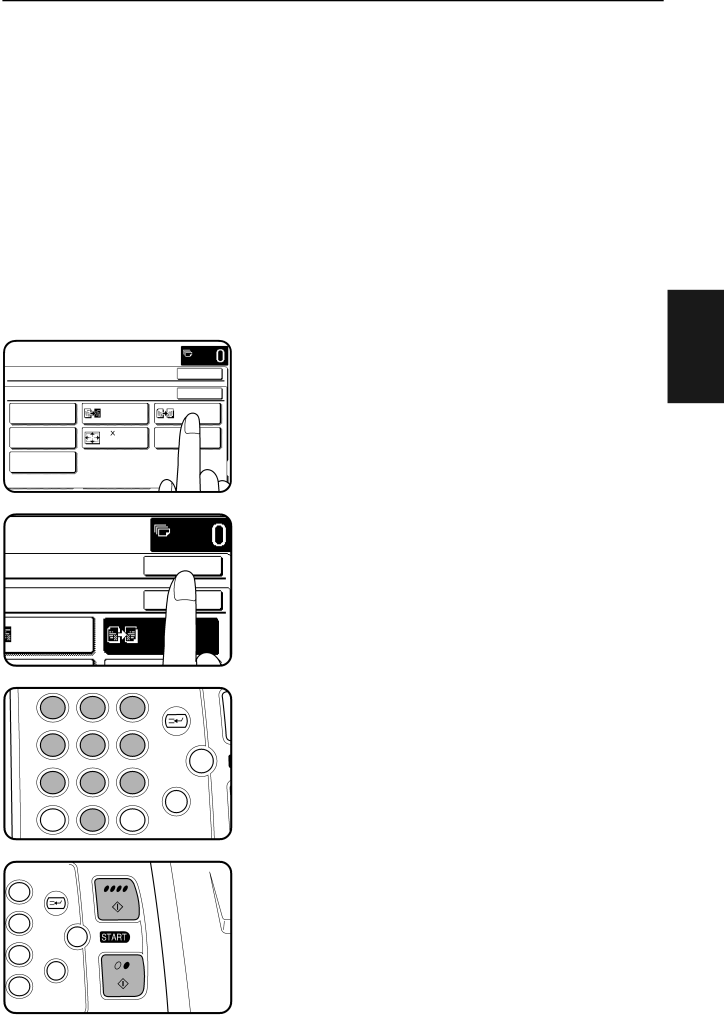

Press the upper “OK” key.

Make all other desired copier selections and enter the desired number of copies.

Press the COLOR COPY START () key or BLACK COPY START () key.

●To cancel the MIRROR IMAGE function, press the MIRROR IMAGE again on the IMAGE EDIT menu screen.

Image editing functions

3-29

Image 71

Sharp AR-C250 operation manual Press the Mirror Image key on the touch panel, Mirror Image key will be highlighted
