THE GRAND TOUR

User’s Manual

LAN jack This jack lets you connect to a LAN. The adaptor has built-in support for Ethernet LAN (10 megabits per sec- ond, 10BASE-T), Fast Ethernet LAN (100 megabits per second, 100BASE-Tx) or Giga-bit (depend on model you purchased). The LAN has two indicators. The LAN has two indicators. See Chapter 4, Operating Basics, for detailes.

DC IN 15V The AC adaptor connects to this socket. Use only the model of AC adaptor that comes with the computer. Using the wrong adaptor can damage your computer.

Security lock slot A security cable attaches to this slot. The optional secu- rity cable anchors your computer to a desk or other large object to deter theft.

Underside

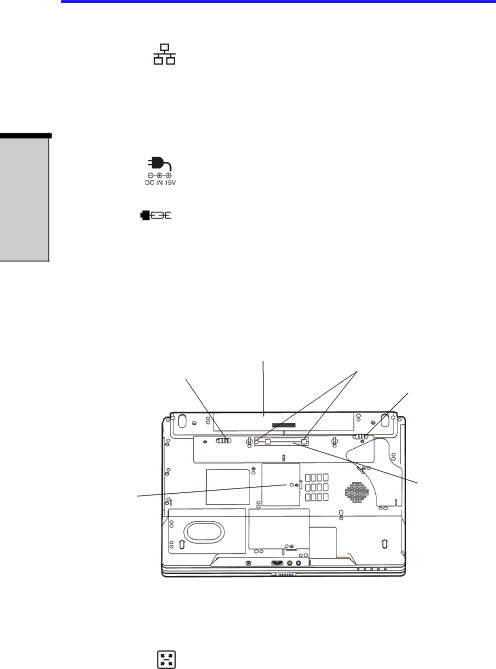

Figure 2-5 shows the underside of the computer. Make sure the display is closed before turning over your computer.

		BATTERY	DOCKING
		PACK	DOCKING
	BATTERY PACK	PACK	HOLE	BATTERY
	BATTERY PACK		HOLE	BATTERY
	LOCK			RELEASE LATCH

MEMORY	DOCKING
MEMORY	PORT
MODULE COVER

Figure 2-5 The underside of the computer

Docking holes These holes ensure a proper connection between the computer and an optional Port Replicator.

2-6
