3.3Config Check Test

The config check test checks unit configuration. It includes:

?CPU type

?System memory size

?ODD type

?HDD type & capacity

?BIOS version

This test needs input unit Part Number by manual to make comparison with known SKU data.

NOTE: To execute this test, you must input unit Part Number as “Uppercase Character”.

Then it will show its configuration is correct (in green color) or failed (in red color).

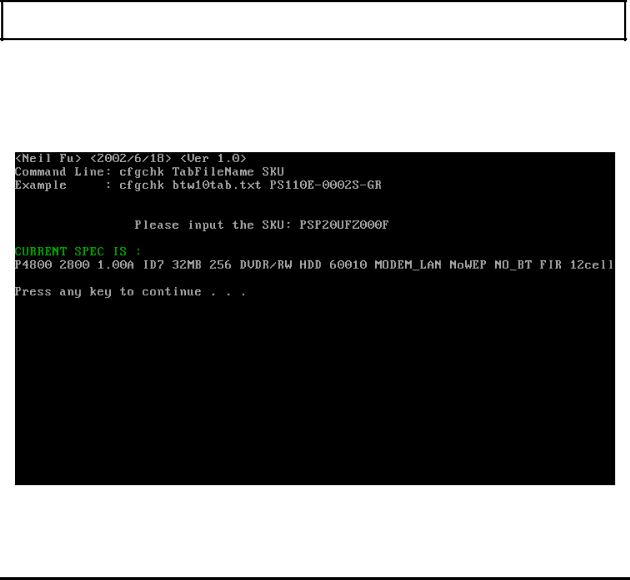

The screen should display as below, indicating whether the test is passed or failed after comparison.

Tecra A3/S2 Series Maintenance Manual 3-7
