Sterling SVL-C, SVL-A, SVL-B, SVL-D installation instructions Programming, Empty adjustment

Page 26

Programming:

Overview of the modes and their basic functions:

•Operating mode: Normal operating mode. In this mode all normal sensor functions are active.

•Adjustment mode: Setting of the switching threshold by empty and full adjustment.

•Locking mode: Locking and unlocking of the unit possible to avoid tampering.

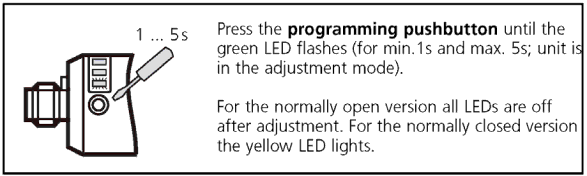

Empty adjustment

The unit must be adjusted after installation in the empty tank (empty adjustment). The tank can be considered to be "empty" when the medium to be detected is a minimum of 20mm (0.9 inches) away from the active zone. If the sensor detects a medium after adjustment, its switching status changes.

Note: The sensor is operational just with empty adjustment. However, it is recommended to carry out a "full adjustment" with the active zone being completely covered after empty adjustment. On the basis of the values for the empty state/full state the internal microprocessor determines the optimum position of the switching thresholds between the two states. Using both adjustment criteria (empty and full adjustment) results in the maximum operational reliability for the application. For empty adjustment the internal microprocessor generates 2 values.

The first value corresponds to the sensor signal measured in the empty state. The second value is an assumed measured value for the full state. It is calculated from the just measured empty state and a factory signal preset. For full adjustment this second value is replaced by a real measured value.

SVL-A, SVL-B, SVL-C, & SVL-D Self-Contained Material Loaders - Venturi Style 26 of 49

Page 25 Page 27
Image 26
Page 25 Page 27
Contents Operation and Installation Instructions SVL-A, SVL-B, SVL-C, & SVL-DPage Shipping Information Unpacking and InspectionTable of Contents Technical Data Safety Instructions How to Use This ManualExplanations and Information For Your Safety How to Use This ManualUnit Safety Maintenance ResponsibilityInstallation General InformationOror Installing the Material Receiver Not to scalePage To Digital Dosing Feeder SF-1 FeederShop Air Installing the Control AssemblyAssembly Connecting the Compressed Air Supply 10 Venturi AssemblyConnecting Material Lines PerformanceSVL-C Two inlet Installation To Install the Ratio OptionElectrical Connection Functional Description Operational SummaryVenturi Assembly Method of FunctioningControl Assembly Control and Regulator UnitPreparations SetupAdjusting Compressed Air Flow Setting the Mixing Ratio of the Components SVL-C Units Electrical Connection Basic Setting of the Filling Level in the Conveyor HopperMounting OperationEmpty adjustment ProgrammingFull adjustment LockingError messages UnlockingSet-up / Operation Daily Weekly Every 3 months MaintenanceMaintenance Intervals Cleaning the Conveying Filter Pertaining to the use of compressed airCleaning the Compressed Air Filter SVL-AAdjusting the Level Probe DisassemblyTroubleshooting Remedy See Test Steps BelowPage Technical Data Dimension Sheet SVL-ASVL-B SVL-C SVL-D Spare Parts Lists SVL-B SVL-C Control Assembly Wand Assembly 10 Take-Off Wand Assembly Quick Start Guide -SVL Self Contained Material Loader Technical Assistance Parts Department
