SwitchBlade x3112 Installation Guide

AT-SBx3112 Chassis

The AT-SBx3112 Chassis has a modular design that is seven Rack Units (RU’s) high. It contains a high-speed backplane which has the capacity for the following:

ˆUp to two switching fabric line cards

ˆUp to ten Ethernet line cards

ˆUp to two AC system power supplies

ˆUp to two PoE power supplies

ˆOne fan tray

Four individual A/C PSU plugs are provided on the rear panel for the power supply slot.

The chassis provides high resiliency with a passive backplane, capacity for ten line cards, redundant controller cards and power supplies The chassis supports up to 40 ports at 10 Gbps of full-duplex data exchange or 400 Gbps switching throughput capacity.

All of the controllers, line cards, power supplies and the fan tray are hot- swappable.

Figure 1 and Figure 2 on page 18 show the front and rear views of the AT-SBx3112 Chassis as shipped from the factory. The AT-SBx31FAN Tray is pre-installed in the chassis at the factory.

P	P	S	S
O	O	Y	Y
E	E	S	S
		T	T
		E	E
		M	M
0			SBx31FAN
			1
2			POWER
			3
4
			5
6
			7
8
			9
10
			11
			ESD
			1782

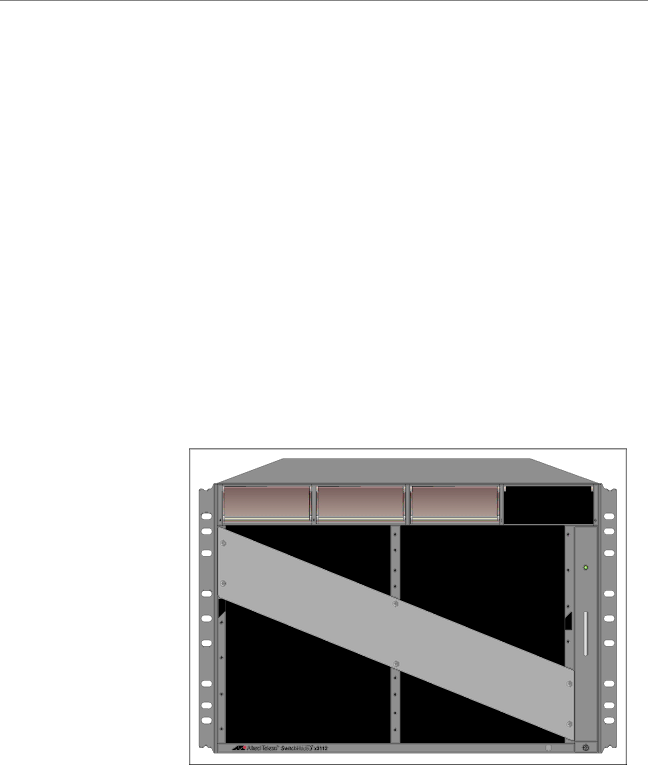

Figure 1 Front View of the AT-SBx3112 Chassis

17
