USB Port

SD Card Slot

SwitchBlade x3112 Installation Guide

The USB slot is an interface designed for temporary storage of configuration files on a memory stick. This interface is presently unsupported by the Switchblade x3112 Management Software and will be available in future software releases.

The SD slot for a secure digital memory (SD) card is displayed in Figure 9 and is used in the following situations:

Storing backup copies of the master configuration file on the AT-SBx31CFC Fabric Control Card. You can maintain a library of past configuration files of a chassis so that you can return a unit to a previous configuration.

Transferring master configuration files between chassis - You can configure units that are to have similar configurations by transferring the master configuration file with a secure digital memory card.

SD

READY BUSY FAULT

1818

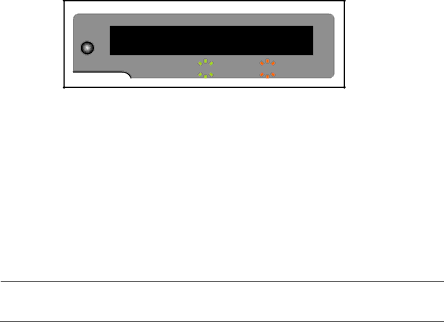

Figure 9 SD Card Slot and LED

An SD card is optional. The AT-SBx31CFC Fabric Control Card can operate without a memory card.

The following SD flash memory cards are officially supported in the first release.

SanDisk 2GB Flash card

SanDisk 4GB SDHC Flash card

Note

Others brands can be used but are not guaranteed to work.

For ordering information, contact your Allied Telesis sales representative or visit our web site.
