Canon C75 Chapter, 8 PressC, 12-14 Maintenance, 9Close the printer cover, 10Close the document tray, 7With the label facing outwards, insert

1 212

Download 212 pages, 2.12 Mb

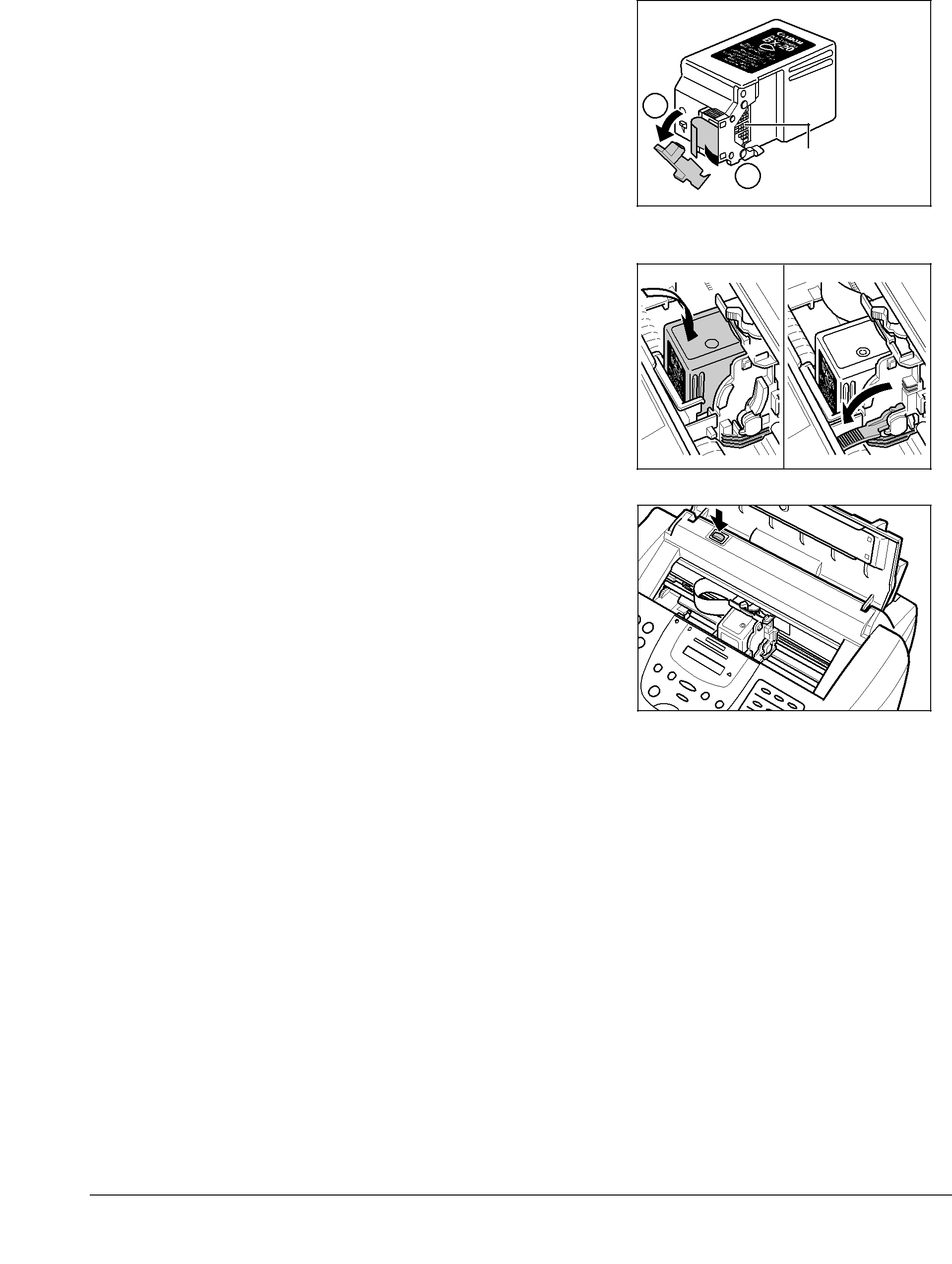

6Remove the new BJ cartridge from its package, then remove the orange protective capq and tapew.

•Discard the cap and tape. Never attempt to reattach them to the BJ cartridge print head.

•Install the BJ cartridge immediately after removing the cap and tape.

•Spilled ink can stain any surface; protect yourself and your work area.

1

2

DO NOT TOUCH THESE PRECISION COMPONENTS.

7With the label facing outwards, insert

the BJ cartridge into the cartridge holder. Lower the blue cartridge lock lever until it locks into position.

8 PressC.

• The cartridge holder moves to its home position on the right side of the unit and begins cleaning the BJ cartridge print head. This process takes about 55 seconds.

cDo not try to manually move or stop the cartridge holder since this may damage the unit.

9Close the printer cover.10Close the document tray.*

nIf you need to unplug the unit, wait until it i displayed in the LCD). Otherwise the cartridg causing the BJ cartridge to remain uncapped and

* Hong Kong, Singapore, and Malaysia only.
