Replacing a BJ Tank

This section describes how to replace a BJ tank in an installed Colour BJ cart Before replacing a BJ tank, be sure to read theWhensectionto Replace a BJ

Cartridge or BJ Tank. (1 p. 12-8)

n• Do not leave empty BJ tanks in a Colour BJ cartridge. Remove them immediately when they run out of ink, and replace them with new ones. Do not leave a Colour BJ cartridge with either of its BJ tanks missing as the ink in the BJ cartridge will dry and adversely affect print quality.

• Do not replace BJ tanks while the unit is printing or performing another operation.

Leave the Colour BJ cartridge installed in the unit and follow this procedure to replace a BJ tank:

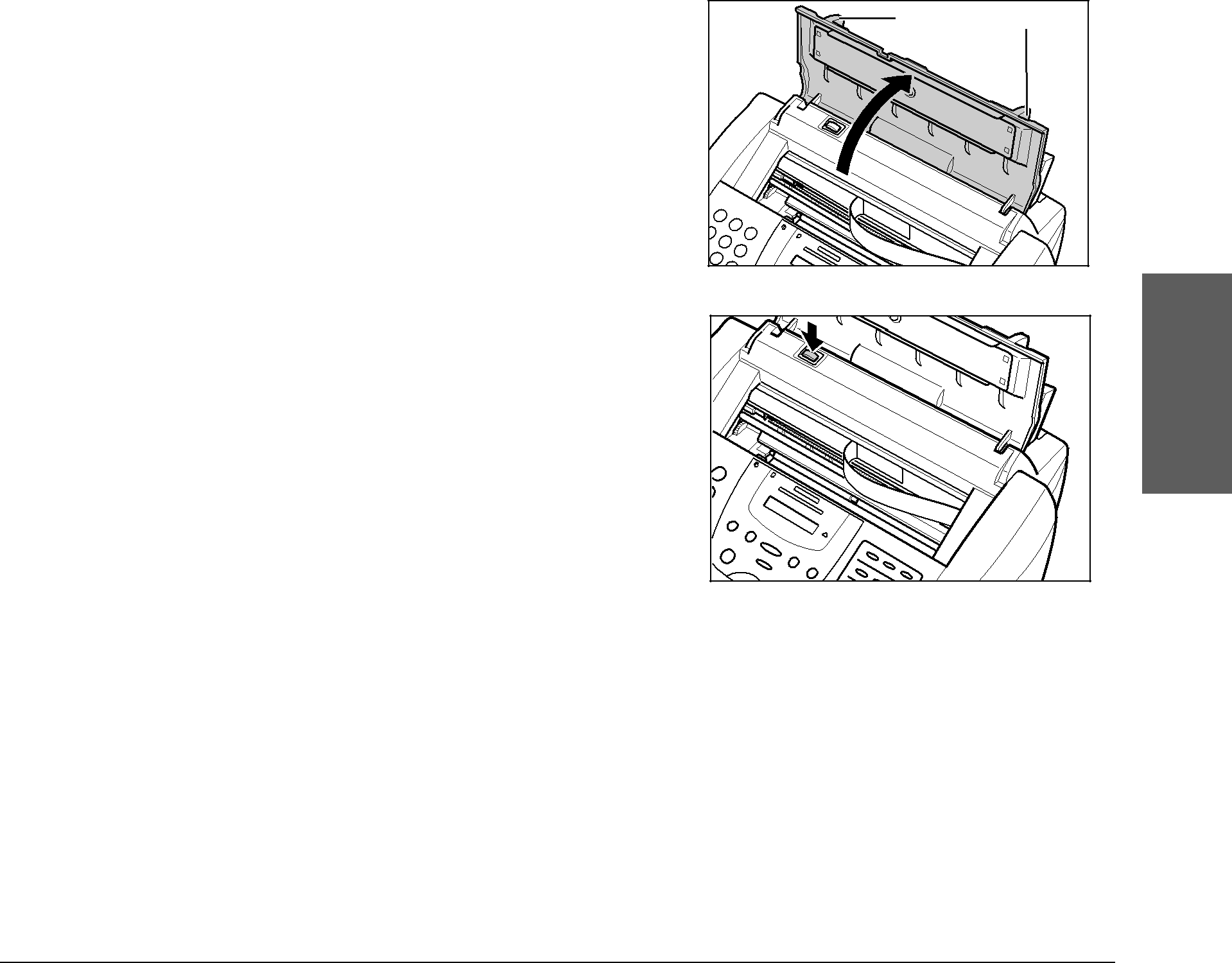

1Make sure the unit is plugged in.2Open the document tray.*

3 Lift the document guides to open the	DOCUMENT GUIDES
printer cover.

• If the printer cover does not open easily, slide the document guides outwards and then open the printer cover.

4 PressC.	Maintenance

* Hong Kong, Singapore, and Malaysia only.

Chapter 12

Maintenance 12-15
