c• Do not try to manually move or stop the cartridge holder since this may damage the unit.

•Do not touch the components shown or any metal parts since this may adversely affect operation of the unit and/or affect print quality.

•The unit has an automatic protection feature that helps keep it from overheating. If the cartridge holder does not move, unplug the unit and

let it cool for several minutes. Then plug it in again and press C to move the cartridge holder.

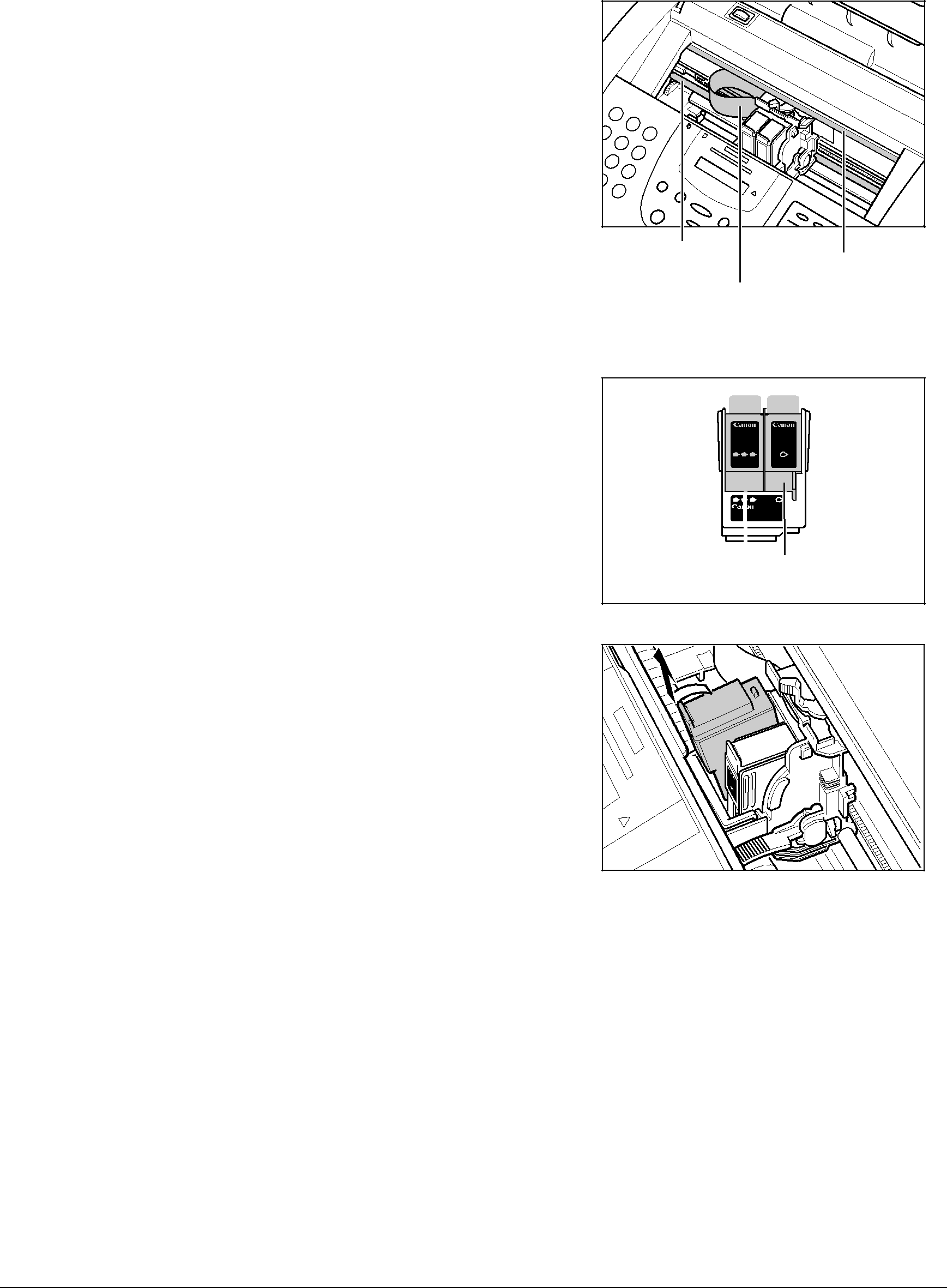

ROUND SHAFT

GUIDE RAIL

RIBBON CABLE

nThe Colour BJ tank is on the left, and the Black BJ tank is on the right.

Color Slot	Black Slot
Ink	Ink
Cartridge	Cartridge
BCl-21	BCl-21
Color	Black
Made in	Made in
Japan	Japan

Made in Japan

Color BJ BC-21e

Cartridge

BCIÐ21 COLOUR	BCIÐ21 BLACK
BJ TANK	BJ TANK

5Pull the tab on the BJ tank forward to release it, then remove the BJ tank from its slot.

•Do not remove the BJ cartridge from the unit.

•Do not remove both BJ tanks together. Remove and replace each one individually to ensure that they are inserted in the correct slot. Inserting them in the wrong slot will cause colours to print incorrectly.

•If a partially used BJ tank must be removed for some reason, keep the BJ tank installed in another Colour BJ cartridge. Otherwise the ink will dry and adversely affect print quality.

•Discard the old BJ tank immediately according to the local laws and regulations for disposal of consumables. You may want to place it in a plastic bag to keep any residual ink from spilling.

•Spilled ink can stain any surface; protect yourself and your work area.
