IBM R400 70

Table 14. Removal steps of palm rest (continued)

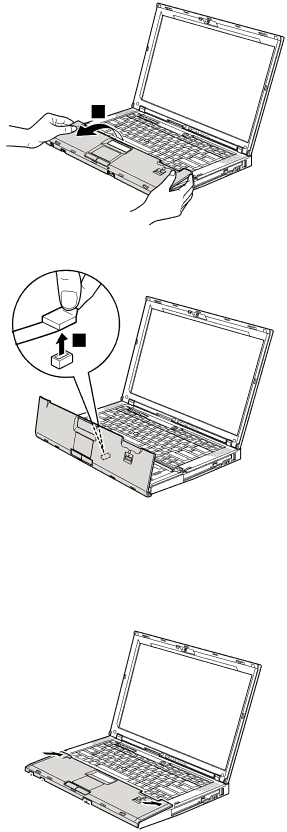

When installing: When you attach the palm rest, do as follows:

1. Attach the touch pad connector firmly to the system board.

2. Press the left and right top edges of the palm rest to fit it into place.

70 ThinkPad T400 and R400Hardware Maintenance Manual
