1160 CPU

For access, remove these FRUs in order:

v“1010 Battery pack” on page 64

v“1040 Palm rest or palm rest with fingerprint reader” on page 69

v“1070 Keyboard” on page 74

v“1130 Keyboard bezel” on page 88

v“1140 Speaker assembly” on page 90

v“1150 Fan assembly” on page 92

Table 26. Removal steps of CPU

Attention: CPU is extremely sensitive. When you service the CPU, avoid any kind of rough handling.

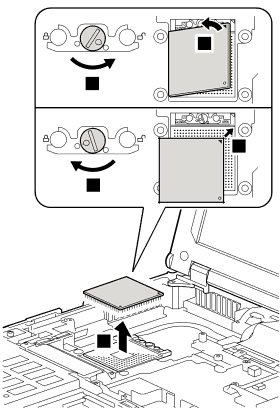

Rotate the head of the screw in the direction shown by arrow

to release the

lock; then remove the CPU.



1

2

a

b

3

When installing: Place the CPU on the CPU socket

, and then rotate the

head of the screw in the direction shown by arrow

to secure the CPU.

ThinkPad T400 and R400 97
