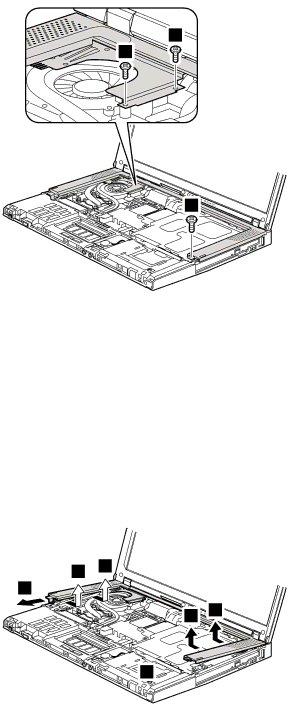

Table 23. Removal steps of keyboard bezel (continued)

In step 3, release the wireless antenna cables from the cable guide.

Step Screw (quantity) Color Torque

3 M2 × 3 mm, small-head, nylon-coated (4) Silver 0.167 Nm(1.7 kgfcm)

In step 4, detach the claws. Then remove the keyboard bezel in the direction

shown by arrow 5.

When installing: Make sure that all the claws are attached firmly.

ThinkPad T400 and R400 89
